Grippers - Square - Tool Steel - Diamond Serration - C'Bore - Inch (HS-C)
HS-92-C

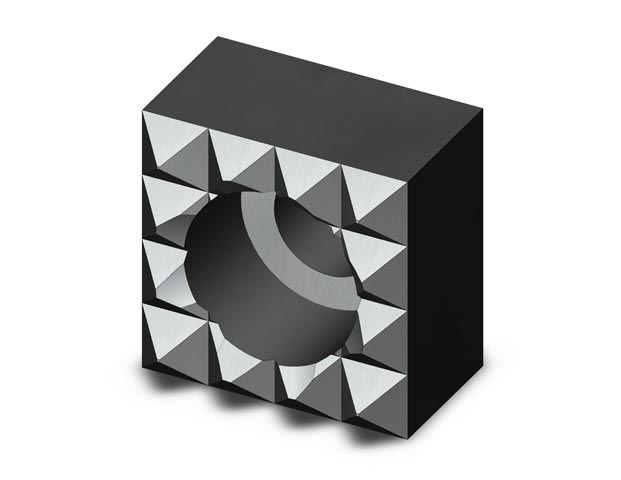

Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine

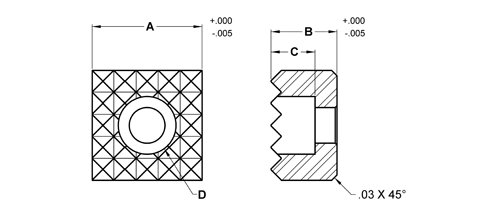

| Part # | A OD in | B Height in | C C'Bore in | D C'Bore For | Tooth Pattern |
|
|---|---|---|---|---|---|---|
| HS-101-C | 1 | 1/2 | 5/16 | 1/4 SHCS | Fine | |
| HS-101-C-EF | 1 | 1/2 | 5/16 | 1/4 SHCS | EF | |
| HS-102-C | 1 | 1/2 | 5/16 | 1/4 SHCS | Coarse | |
| HS-92-C | 1/2 | 3/8 | 1/4 | #10 SHCS | Fine | |
| HS-92-C-EF | 1/2 | 3/8 | 1/4 | #10 SHCS | EF | |
| HS-92-C-SF | 1/2 | 3/8 | 1/4 | #10 SHCS | SF | |
| HS-95-C | 1/2 | 1/2 | 1/4 | #10 SHCS | Fine | |
| HS-95-C-EF | 1/2 | 1/2 | 1/4 | #10 SHCS | EF | |
| HS-95-C-SF | 1/2 | 1/2 | 1/4 | #10 SHCS | SF | |
| HS-9625-C | 5/8 | 1/2 | 1/4 | #10 SHCS | Fine | |
| HS-9625-C-EF | 5/8 | 1/2 | 1/4 | #10 SHCS | EF | |
| HS-962-C | 5/8 | 3/8 | 1/4 | #10 SHCS | Fine | |
| HS-962-C-EF | 5/8 | 3/8 | 1/4 | #10 SHCS | EF | |
| HS-9635-C | 5/8 | 1/2 | 1/4 | #10 SHCS | Coarse | |
| HS-963-C | 5/8 | 3/8 | 1/4 | #10 SHCS | Coarse | |
| HS-97-C | 3/4 | 1/2 | 5/16 | 1/4 SHCS | Fine | |
| HS-97-C-EF | 3/4 | 1/2 | 5/16 | 1/4 SHCS | EF | |
| HS-98-C | 3/4 | 1/2 | 5/16 | 1/4 SHCS | Coarse |
