Grippers - Square - Tool Steel - Straight Serration - C'Bore - Inch (HS-SS)
HS-92-C-SS

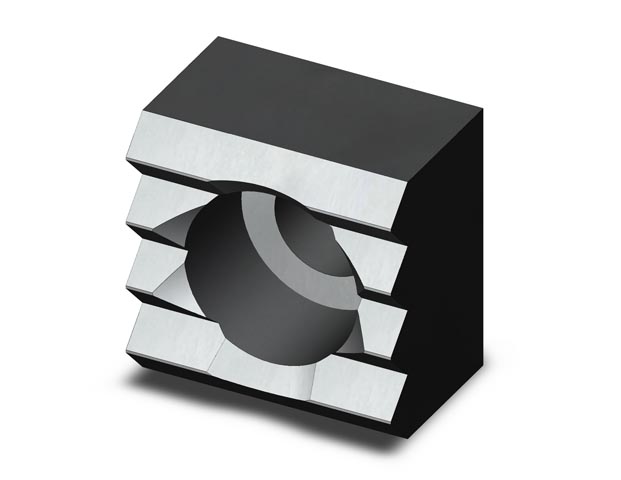

Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine Straight

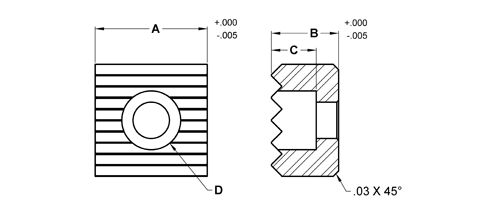

| Part # | A Width in | B Height in | C C'Bore in | D C'Bore For | Tooth Pattern |
|
|---|---|---|---|---|---|---|
| HS-101-C-SS | 1 | 1/2 | 5/16 | 1/4 SHCS | Fine | |
| HS-101-C-SS-EF | 1 | 1/2 | 5/16 | 1/4 SHCS | EF | |
| HS-102-C-SS | 1 | 1/2 | 5/16 | 1/4 SHCS | Coarse | |
| HS-92-C-SS | 1/2 | 3/8 | 1/4 | #10 SHCS | Fine | |
| HS-92-C-SS-EF | 1/2 | 3/8 | 1/4 | #10 SHCS | EF | |
| HS-92-C-SS-SF | 1/2 | 3/8 | 1/4 | #10 SHCS | SF | |
| HS-95-C-SS | 1/2 | 1/2 | 1/4 | #10 SHCS | Fine | |
| HS-95-C-SS-EF | 1/2 | 1/2 | 1/4 | #10 SHCS | EF | |
| HS-95-C-SS-SF | 1/2 | 1/2 | 1/4 | #10 SHCS | SF | |
| HS-9625-C-SS | 5/8 | 1/2 | 1/4 | #10 SHCS | Fine | |
| HS-9625-C-SS-EF | 5/8 | 1/2 | 1/4 | #10 SHCS | EF | |
| HS-962-C-SS | 5/8 | 3/8 | 1/4 | #10 SHCS | Fine | |
| HS-962-C-SS-EF | 5/8 | 3/8 | 1/4 | #10 SHCS | EF | |
| HS-9635-C-SS | 5/8 | 1/2 | 1/4 | #10 SHCS | Coarse | |
| HS-963-C-SS | 5/8 | 3/8 | 1/4 | #10 SHCS | Coarse | |
| HS-97-C-SS | 3/4 | 1/2 | 5/16 | 1/4 SHCS | Fine | |
| HS-97-C-SS-EF | 3/4 | 1/2 | 5/16 | 1/4 SHCS | EF | |
| HS-98-C-SS | 3/4 | 1/2 | 5/16 | 1/4 SHCS | Coarse |
