Grippers - Square - Tool Steel - Diamond Serration - Tapped - Metric (MHS)
MHS-9100

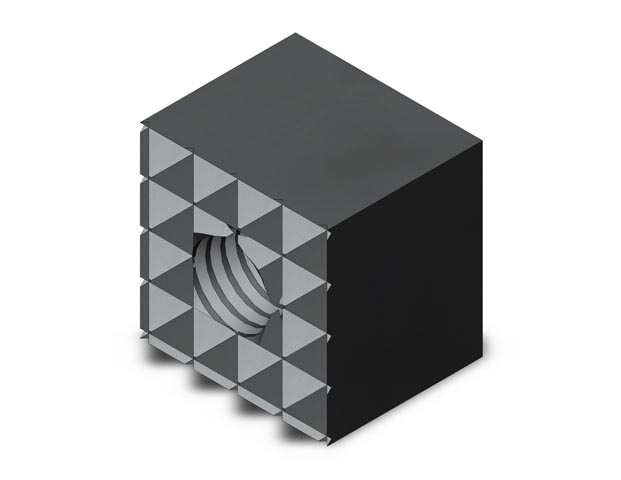

Tool Steel Gripper - Square - 10 mm X 10 mm - Extra Fine

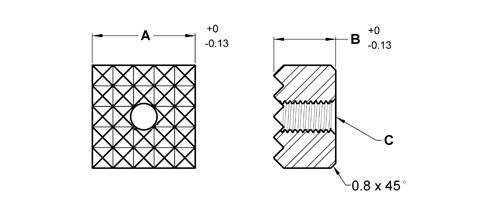

| Part # | A Width mm | B Height mm | C Tap | Tooth Pattern |
|
|---|---|---|---|---|---|
| MHS-9100 | 10 | 10 | M5x0.8 | EF | |
| MHS-9102 | 10 | 12 | M5x0.8 | EF | |
| MHS-9120 | 12 | 10 | M5x0.8 | Fine | |
| MHS-9122 | 12 | 12 | M5x0.8 | Fine | |
| MHS-9160 | 16 | 10 | M6x1.0 | Fine | |
| MHS-9162 | 16 | 12 | M6x1.0 | Fine | |
| MHS-9200 | 20 | 10 | M5x0.8 | Fine | |
| MHS-9202 | 20 | 12 | M5x0.8 | Fine | |
| MHS-9250 | 25 | 10 | M6x1.0 | Fine | |
| MHS-9252 | 25 | 12 | M6x1.0 | Fine |
