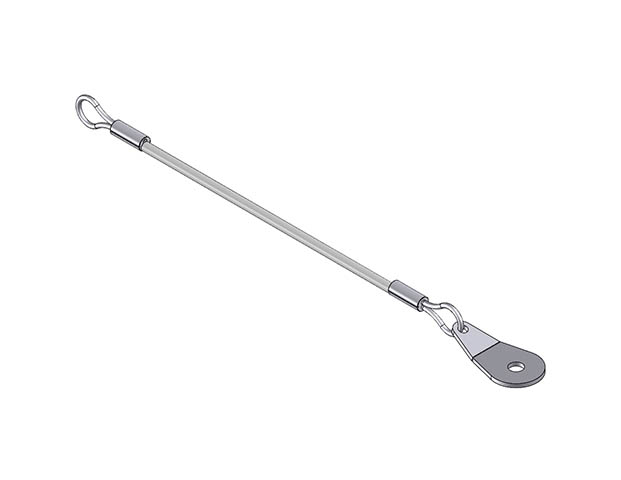

Quick Release Pin Wire Rope Lanyard - 1/16" Dia. - Loop-to-Teardrop Tab
LCL-1-06-T13

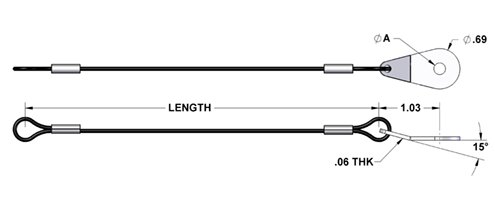

Wire Rope Lanyard w/ Clear Cover - 1/16 in Dia X 6 in - Teardrop Tab - .13 in
| Part # | Wire Diameter in | Wire Length in | Tab Style | Tab Hole Size in | Color |
|
|---|---|---|---|---|---|---|
| LBK-1-06-T13 | 1/16 | 6 | Teardrop | 0.13 | Black | |
| LBK-1-06-T20 | 1/16 | 6 | Teardrop | 0.20 | Black | |
| LBK-1-06-T28 | 1/16 | 6 | Teardrop | 0.28 | Black | |
| LBK-1-08-T13 | 1/16 | 8 | Teardrop | 0.13 | Black | |
| LBK-1-08-T20 | 1/16 | 8 | Teardrop | 0.20 | Black | |
| LBK-1-08-T28 | 1/16 | 8 | Teardrop | 0.28 | Black | |
| LBK-1-10-T13 | 1/16 | 10 | Teardrop | 0.13 | Black | |
| LBK-1-10-T20 | 1/16 | 10 | Teardrop | 0.20 | Black | |
| LBK-1-10-T28 | 1/16 | 10 | Teardrop | 0.28 | Black | |
| LBK-1-12-T13 | 1/16 | 12 | Teardrop | 0.13 | Black | |
| LBK-1-12-T20 | 1/16 | 12 | Teardrop | 0.20 | Black | |
| LBK-1-12-T28 | 1/16 | 12 | Teardrop | 0.28 | Black | |
| LCL-1-06-T13 | 1/16 | 6 | Teardrop | 0.13 | Clear | |
| LCL-1-06-T20 | 1/16 | 6 | Teardrop | 0.20 | Clear | |
| LCL-1-06-T28 | 1/16 | 6 | Teardrop | 0.28 | Clear | |
| LCL-1-08-T13 | 1/16 | 8 | Teardrop | 0.13 | Clear | |
| LCL-1-08-T20 | 1/16 | 8 | Teardrop | 0.20 | Clear | |
| LCL-1-08-T28 | 1/16 | 8 | Teardrop | 0.28 | Clear | |
| LCL-1-10-T13 | 1/16 | 10 | Teardrop | 0.13 | Clear | |
| LCL-1-10-T20 | 1/16 | 10 | Teardrop | 0.20 | Clear | |
| LCL-1-10-T28 | 1/16 | 10 | Teardrop | 0.28 | Clear | |
| LCL-1-12-T13 | 1/16 | 12 | Teardrop | 0.13 | Clear | |
| LCL-1-12-T20 | 1/16 | 12 | Teardrop | 0.20 | Clear | |
| LCL-1-12-T28 | 1/16 | 12 | Teardrop | 0.28 | Clear | |
| LGR-1-06-T13 | 1/16 | 6 | Teardrop | 0.13 | Green | |
| LGR-1-06-T20 | 1/16 | 6 | Teardrop | 0.20 | Green | |
| LGR-1-06-T28 | 1/16 | 6 | Teardrop | 0.28 | Green | |
| LGR-1-08-T13 | 1/16 | 8 | Teardrop | 0.13 | Green | |
| LGR-1-08-T20 | 1/16 | 8 | Teardrop | 0.20 | Green | |
| LGR-1-08-T28 | 1/16 | 8 | Teardrop | 0.28 | Green | |
| LGR-1-10-T13 | 1/16 | 10 | Teardrop | 0.13 | Green | |
| LGR-1-10-T20 | 1/16 | 10 | Teardrop | 0.20 | Green | |
| LGR-1-10-T28 | 1/16 | 10 | Teardrop | 0.28 | Green | |
| LGR-1-12-T13 | 1/16 | 12 | Teardrop | 0.13 | Green | |
| LGR-1-12-T20 | 1/16 | 12 | Teardrop | 0.20 | Green | |
| LGR-1-12-T28 | 1/16 | 12 | Teardrop | 0.28 | Green | |
| LNC-1-06-T13 | 1/16 | 6 | Teardrop | 0.13 | No Cover | |
| LNC-1-06-T20 | 1/16 | 6 | Teardrop | 0.20 | No Cover | |
| LNC-1-06-T28 | 1/16 | 6 | Teardrop | 0.28 | No Cover | |
| LNC-1-08-T13 | 1/16 | 8 | Teardrop | 0.13 | No Cover | |
| LNC-1-08-T20 | 1/16 | 8 | Teardrop | 0.20 | No Cover | |
| LNC-1-08-T28 | 1/16 | 8 | Teardrop | 0.28 | No Cover | |
| LNC-1-10-T13 | 1/16 | 10 | Teardrop | 0.13 | No Cover | |
| LNC-1-10-T20 | 1/16 | 10 | Teardrop | 0.20 | No Cover | |
| LNC-1-10-T28 | 1/16 | 10 | Teardrop | 0.28 | No Cover | |
| LNC-1-12-T13 | 1/16 | 12 | Teardrop | 0.13 | No Cover | |
| LNC-1-12-T20 | 1/16 | 12 | Teardrop | 0.20 | No Cover | |
| LNC-1-12-T28 | 1/16 | 12 | Teardrop | 0.28 | No Cover |
