Indexing Plungers - Pull Pins - Round Handle - Steel Plunger - Steel Housing (CP-R)
CP-K25R
Pull Pin - Steel Plunger w/ Round Handle - Steel Barrel - 1/4 in

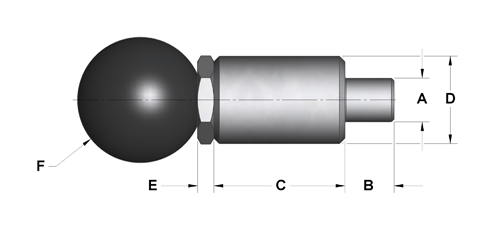

| Part # | A in | B in | C in | D in | E in | F in |
|
|---|---|---|---|---|---|---|---|
| CP-K100R | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K200R | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K201R | 1/2 | 11/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K25R | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K320R | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 | |
| CP-K420R | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 |
