Indexing Plungers - Pull Pins - T-Handle - Steel Plunger - Steel Housing (CP-T)
CP-K25T

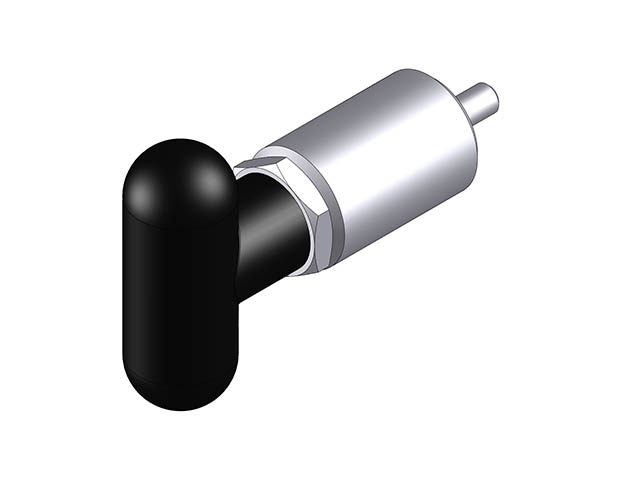

Pull Pin - Steel Plunger w/ T-Handle - Steel Barrel - 1/4 in

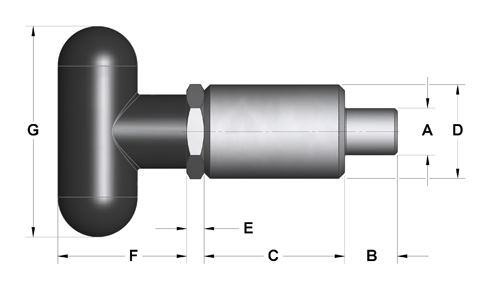

| Part # | A in | B in | C in | D in | E in | F in | G in |
|
|---|---|---|---|---|---|---|---|---|
| CP-K100T | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
| CP-K200T | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
| CP-K201T | 1/2 | 11/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
| CP-K25T | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
| CP-K320T | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
| CP-K420T | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-7/16 | 2-1/4 |
