Grippers - Round - Stainless Steel - Diamond Surface - Tapped - Metric (MCSRP-DS)
MCSRP-080-DS

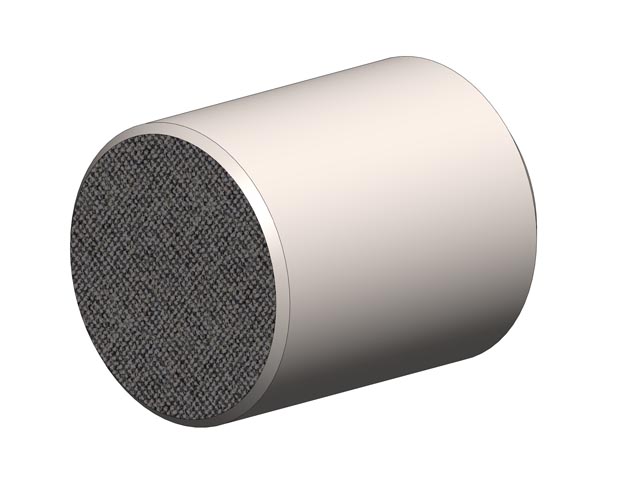

Diamond Surface Gripper - Tapped - 8 mm Dia X 10 mm

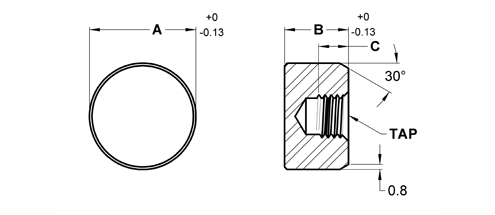

| Part # | A OD mm | B Height mm | C Thread Length mm | Tap |
|
|---|---|---|---|---|---|
| MCSRP-080-DS | 8 | 10 | M4x0.7 | 5.0 | |
| MCSRP-082-DS | 8 | 12 | M4x0.7 | 6.4 | |
| MCSRP-100-DS | 10 | 10 | M5x0.8 | 5.0 | |
| MCSRP-102-DS | 10 | 12 | M5x0.8 | 6.4 | |
| MCSRP-120-DS | 12 | 10 | M5x0.8 | 5.0 | |
| MCSRP-122-DS | 12 | 12 | M5x0.8 | 6.4 | |
| MCSRP-160-DS | 16 | 10 | M6x1.0 | 5.0 | |
| MCSRP-162-DS | 16 | 12 | M6x1.0 | 6.4 | |
| MCSRP-200-DS | 20 | 10 | M6x1.0 | 5.0 | |
| MCSRP-202-DS | 20 | 12 | M6x1.0 | 6.4 | |
| MCSRP-250-DS | 25 | 10 | M6x1.0 | 5.0 | |
| MCSRP-252-DS | 25 | 12 | M6x1.0 | 6.4 |
