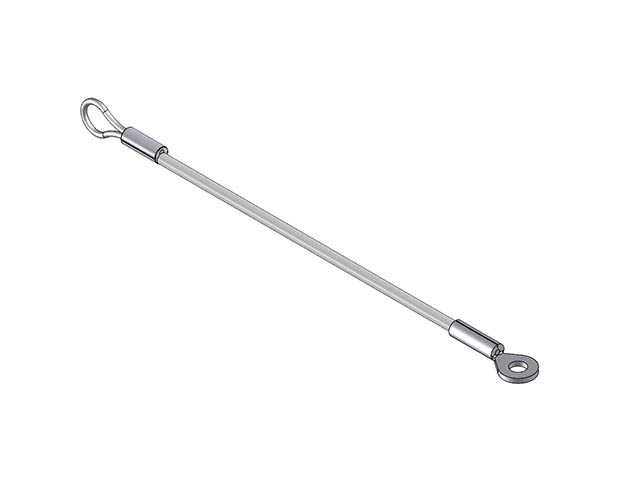

Quick Release Pin Wire Rope Lanyard - 1/16" Dia. - Loop-to-Eye Tab
LCL-1-06-E20
Wire Rope Lanyard w/ Clear Cover - 1/16 in Dia X 6 in - Eye Tab - .20 in.

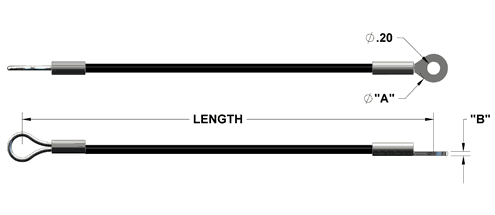

| Part # | Wire Diameter in | Length in | Tab Style | A in | B in | Color |
|
|---|---|---|---|---|---|---|---|
| LBK-1-06-E20 | 1/16 | 6 | Eyelet | 0.41 | 0.06 | Black | |
| LBK-1-08-E20 | 1/16 | 8 | Eyelet | 0.41 | 0.06 | Black | |
| LBK-1-10-E20 | 1/16 | 10 | Eyelet | 0.41 | 0.06 | Black | |
| LBK-1-12-E20 | 1/16 | 12 | Eyelet | 0.41 | 0.06 | Black | |
| LCL-1-06-E20 | 1/16 | 6 | Eyelet | 0.41 | 0.06 | Clear | |
| LCL-1-08-E20 | 1/16 | 8 | Eyelet | 0.41 | 0.06 | Clear | |
| LCL-1-10-E20 | 1/16 | 10 | Eyelet | 0.41 | 0.06 | Clear | |
| LCL-1-12-E20 | 1/16 | 12 | Eyelet | 0.41 | 0.06 | Clear | |
| LGR-1-06-E20 | 1/16 | 6 | Eyelet | 0.41 | 0.06 | Green | |
| LGR-1-08-E20 | 1/16 | 8 | Eyelet | 0.41 | 0.06 | Green | |
| LGR-1-10-E20 | 1/16 | 10 | Eyelet | 0.41 | 0.06 | Green | |
| LGR-1-12-E20 | 1/16 | 12 | Eyelet | 0.41 | 0.06 | Green | |
| LNC-1-06-E20 | 1/16 | 6 | Eyelet | 0.41 | 0.06 | No Cover | |
| LNC-1-08-E20 | 1/16 | 8 | Eyelet | 0.41 | 0.06 | No Cover | |
| LNC-1-10-E20 | 1/16 | 10 | Eyelet | 0.41 | 0.06 | No Cover | |
| LNC-1-12-E20 | 1/16 | 12 | Eyelet | 0.41 | 0.06 | No Cover |
