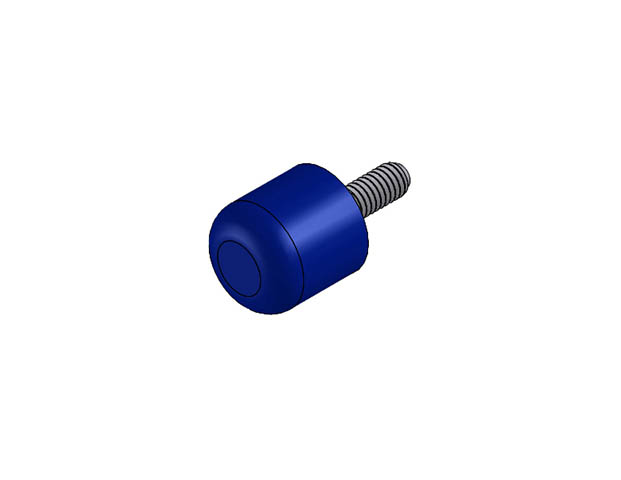

Bumpers - Crane Stop - Round - Urethane - Male Thread (RB)
RB-1010-M14-60UR
Crane Stop Bumper - 60 Dur Urethane - 5/16-18 X 7/8 in

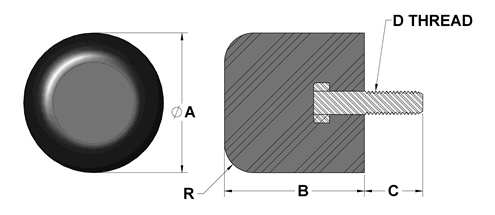

| Part # | A Dia in | B Length in | C Thread Length in | D Thread in | R in | Durometer Shore A | Material |
|
|---|---|---|---|---|---|---|---|---|
| RB-1010-M14-60UR | 1 | 1 | 7/8 | 5/16-18 | 1/4 | 60 | Urethane | |
| RB-1010-M14-80UR | 1 | 1 | 7/8 | 5/16-18 | 1/4 | 80 | Urethane | |
| RB-1515-M14-60UR | 1-1/2 | 1-1/2 | 7/8 | 5/16-18 | 5/16 | 60 | Urethane | |
| RB-1515-M14-80UR | 1-1/2 | 1-1/2 | 7/8 | 5/16-18 | 5/16 | 80 | Urethane | |
| RB-2020-M14-60UR | 2 | 2 | 7/8 | 5/16-18 | 3/8 | 60 | Urethane | |
| RB-2020-M14-80UR | 2 | 2 | 7/8 | 5/16-18 | 3/8 | 80 | Urethane | |
| RB-2525-M14-60UR | 2-1/2 | 2-1/2 | 7/8 | 3/8-16 | 1/2 | 60 | Urethane | |
| RB-2525-M14-80UR | 2-1/2 | 2-1/2 | 7/8 | 3/8-16 | 1/2 | 80 | Urethane | |
| RB-3030-M20-60UR | 3 | 3 | 1-1/4 | 1/2-13 | 5/8 | 60 | Urethane | |
| RB-3030-M20-80UR | 3 | 3 | 1-1/4 | 1/2-13 | 5/8 | 80 | Urethane | |
| RB-4040-M21-60UR | 4 | 4 | 1-5/16 | 1/2-13 | 3/4 | 60 | Urethane | |
| RB-4040-M21-80UR | 4 | 4 | 1-5/16 | 1/2-13 | 3/4 | 80 | Urethane |
