Bumpers - Round - Hex Shoulder - Steel Core - Male Thread - Inch (RB)
RB-516-024-40M-20

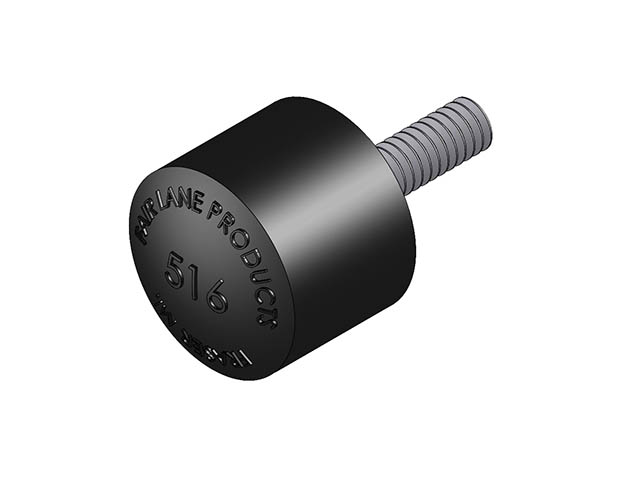

Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - #10-24 X 1-1/4 in

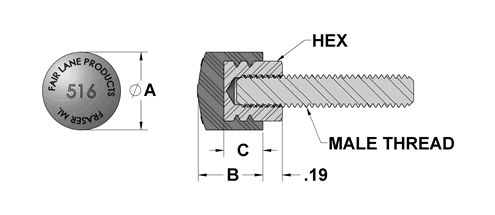

| Part # | A Dia in | B Length in | C in | Hex in | Durometer Shore A | Thread in | Thread Length in | Material |
|
|---|---|---|---|---|---|---|---|---|---|
| RB-516-024-40M-20 | 3/4 | 5/8 | 3/8 | 3/8 | 40 | #10-24 | 1-1/4 | Neoprene | |
| RB-516-024-40M-8 | 3/4 | 5/8 | 3/8 | 3/8 | 40 | #10-24 | 1/2 | Neoprene | |
| RB-516-024M-20 | 3/4 | 5/8 | 3/8 | 3/8 | 70 | #10-24 | 1-1/4 | Neoprene | |
| RB-516-024M-8 | 3/4 | 5/8 | 3/8 | 3/8 | 70 | #10-24 | 1/2 | Neoprene | |
| RB-516-024URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | #10-24 | 1-1/4 | Urethane | |
| RB-516-024URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | #10-24 | 1/2 | Urethane | |
| RB-516-032-40M-20 | 3/4 | 5/8 | 3/8 | 3/8 | 40 | #10-32 | 1-1/4 | Neoprene | |
| RB-516-032-40M-8 | 3/4 | 5/8 | 3/8 | 3/8 | 40 | #10-32 | 1/2 | Neoprene | |
| RB-516-032M-20 | 3/4 | 5/8 | 3/8 | 3/8 | 70 | #10-32 | 1-1/4 | Neoprene | |
| RB-516-032M-8 | 3/4 | 5/8 | 3/8 | 3/8 | 70 | #10-32 | 1/2 | Neoprene | |
| RB-516-032URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | #10-32 | 1-1/4 | Urethane | |
| RB-516-032URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | #10-32 | 1/2 | Urethane | |
| RB-516-120-40M-20 | 3/4 | 5/8 | 3/8 | 7/16 | 40 | 1/4-20 | 1-1/4 | Neoprene | |
| RB-516-120-40M-8 | 3/4 | 5/8 | 3/8 | 7/16 | 40 | 1/4-20 | 1/2 | Neoprene | |
| RB-516-120M-16 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 1/4-20 | 1 | Neoprene | |
| RB-516-120M-20 | 3/4 | 5/8 | 3/8 | 7/16 | 70 | 1/4-20 | 1-1/4 | Neoprene | |
| RB-516-120M-8 | 3/4 | 5/8 | 3/8 | 7/16 | 70 | 1/4-20 | 1/2 | Neoprene | |
| RB-516-120URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 1/4-20 | 1-1/4 | Urethane | |
| RB-516-120URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 1/4-20 | 1/2 | Urethane | |
| RB-516-128-40M-20 | 3/4 | 5/8 | 3/8 | 7/16 | 40 | 1/4-28 | 1-1/4 | Neoprene | |
| RB-516-128-40M-8 | 3/4 | 5/8 | 3/8 | 7/16 | 40 | 1/4-28 | 1/2 | Neoprene | |
| RB-516-128M-20 | 3/4 | 5/8 | 3/8 | 7/16 | 70 | 1/4-28 | 1-1/4 | Neoprene | |
| RB-516-128M-8 | 3/4 | 5/8 | 3/8 | 7/16 | 70 | 1/4-28 | 1/2 | Neoprene | |
| RB-516-128URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 1/4-28 | 1-1/4 | Urethane | |
| RB-516-128URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 1/4-28 | 1/2 | Urethane | |
| RB-516-518-40M-20 | 3/4 | 5/8 | 3/8 | 1/2 | 40 | 5/16-18 | 1-1/4 | Neoprene | |
| RB-516-518-40M-8 | 3/4 | 5/8 | 3/8 | 1/2 | 40 | 5/16-18 | 1/2 | Neoprene | |
| RB-516-524-40M-20 | 3/4 | 5/8 | 3/8 | 1/2 | 40 | 5/16-24 | 1-1/4 | Neoprene | |
| RB-516-524-40M-8 | 3/4 | 5/8 | 3/8 | 1/2 | 40 | 5/16-24 | 1/2 | Neoprene | |
| RB-516-524M-20 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-24 | 1-1/4 | Neoprene | |
| RB-516-524M-8 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-24 | 1/2 | Neoprene | |
| RB-516-524URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 5/16-24 | 1-1/4 | Urethane | |
| RB-516-524URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 5/16-24 | 1/2 | Urethane | |
| RB-516-M-20 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-18 | 1-1/4 | Neoprene | |
| RB-516-M-8 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-18 | 1/2 | Neoprene | |
| RB-516-URM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 5/16-18 | 1-1/4 | Urethane | |
| RB-516-URM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 80 | 5/16-18 | 1/2 | Urethane | |
| RB-516-WM-20 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-18 | 1-1/4 | Nitrile | |
| RB-516-WM-8 | 3/4 | 5/8 | 3/8 | 1/2 | 70 | 5/16-18 | 1/2 | Nitrile |
