Finned Bearing Mount Rollers - Standard Bearing - Inch
RR-9250-2-20-B

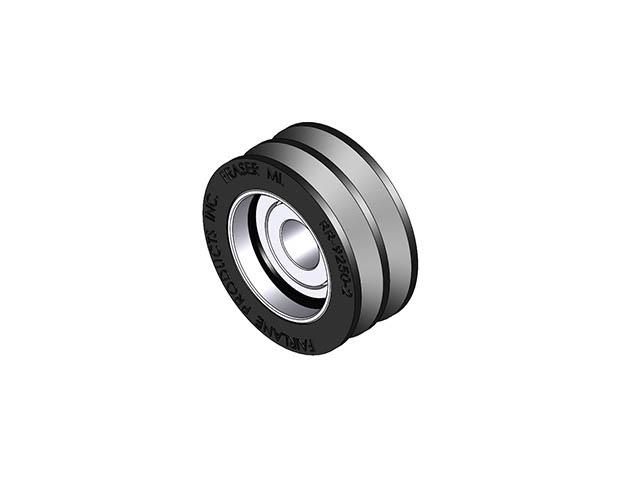

Finned Roller - Standard Bearing Mount - 20 Dur Neoprene - 2.00 in Dia X 0.92 in Wide

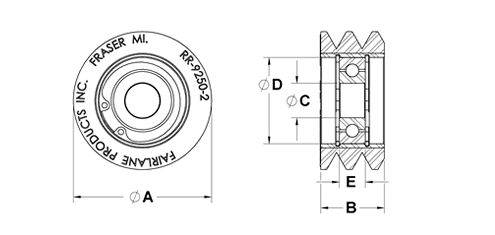

| Part # | A in | B in | C in | D in | E in | No. of Bearings | Bearing Type in | Material | Durometer Shore A | No. of Fins |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| RR-250-20-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 20 | 6 | |
| RR-250-20W-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 20 | 6 | |
| RR-250-2-20-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 20 | 6 | |
| RR-250-2-20W-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 20 | 6 | |
| RR-250-2-35-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 35 | 6 | |
| RR-250-2-35UR-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 35 | 6 | |
| RR-250-2-35W-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 35 | 6 | |
| RR-250-2-60-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 60 | 6 | |
| RR-250-2-60UR-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 60 | 6 | |
| RR-250-2-60W-B | 2.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 60 | 6 | |
| RR-250-35-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 35 | 6 | |
| RR-250-35UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 35 | 6 | |
| RR-250-35W-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 35 | 6 | |
| RR-250-60-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 60 | 6 | |
| RR-250-60UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 60 | 6 | |
| RR-250-60W-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 60 | 6 | |
| RR-667-35-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 35 | 8 | |
| RR-667-35UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 35 | 8 | |
| RR-667-35W-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 35 | 8 | |
| RR-667-60-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 60 | 8 | |
| RR-667-60UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 60 | 8 | |
| RR-667-60W-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 60 | 8 | |
| RR-9250-20-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 20 | 3 | |
| RR-9250-20W-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 20 | 3 | |
| RR-9250-2-20-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 20 | 3 | |
| RR-9250-2-20W-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 20 | 3 | |
| RR-9250-2-35-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 35 | 3 | |
| RR-9250-2-35UR-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 35 | 3 | |
| RR-9250-2-35W-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 35 | 3 | |
| RR-9250-2-60-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 60 | 3 | |
| RR-9250-2-60UR-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 60 | 3 | |
| RR-9250-2-60W-B | 2.00 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 60 | 3 | |
| RR-9250-35-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 35 | 3 | |
| RR-9250-35UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 35 | 3 | |
| RR-9250-35W-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 35 | 3 | |
| RR-9250-60-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Neoprene | 60 | 3 | |
| RR-9250-60UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 60 | 3 | |
| RR-9250-60W-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Nitrile | 60 | 3 |
