DuraSoft® Bearing Mount Rollers - Standard Bearing - Inch
DR-9502-35UR-B

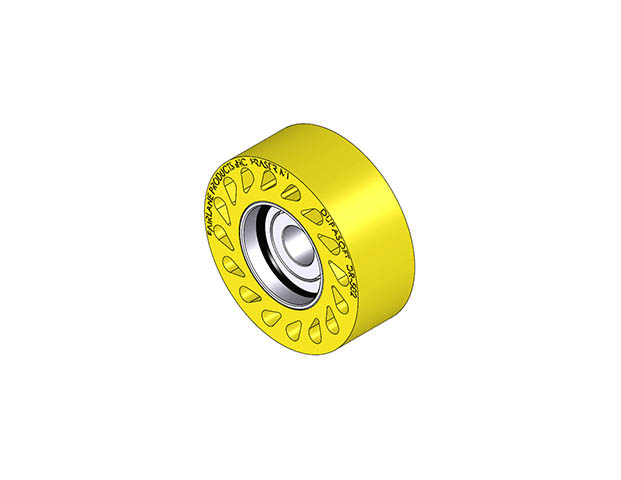

DuraSoft® Roller - Standard Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

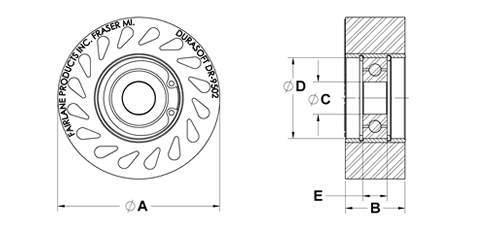

| Part # | A in | B in | C in | D in | E in | No. of Bearings | Bearing Type | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DR-502-35UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 35 | |
| DR-502-60UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 60 | |
| DR-502-80UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 80 | |
| DR-502-95UR-B | 2.50 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 95 | |
| DR-754-20-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 20 | |
| DR-754-20W-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 20 | |
| DR-754-35-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Neoprene | 35 | |
| DR-754-35UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 35 | |
| DR-754-35W-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Nitrile | 35 | |
| DR-754-60UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 60 | |
| DR-754-80UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 80 | |
| DR-754-95UR-B | 4.00 | 1.94 | .500/.505 | 1.245/1.250 | .745/.755 | 1 | C | Urethane | 95 | |
| DR-9502-35UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 35 | |
| DR-9502-60UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 60 | |
| DR-9502-80UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 80 | |
| DR-9502-95UR-B | 2.50 | .92 | .500/.505 | 1.245/1.250 | .370/.380 | 1 | B | Urethane | 95 | |
| DR-9754-20-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Neoprene | 20 | |
| DR-9754-20W-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Nitrile | 20 | |
| DR-9754-35-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Neoprene | 35 | |
| DR-9754-35UR-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Urethane | 35 | |
| DR-9754-35W-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Nitrile | 35 | |
| DR-9754-60UR-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Urethane | 60 | |
| DR-9754-80UR-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Urethane | 80 | |
| DR-9754-95UR-B | 4.00 | .92 | .500/.505 | 1.245/1.1250 | .370/.380 | 1 | B | Urethane | 95 |
