DuraSoft® Bearing Mount Rollers - Precision Bearing - Inch
DR-9502-35UR-BP

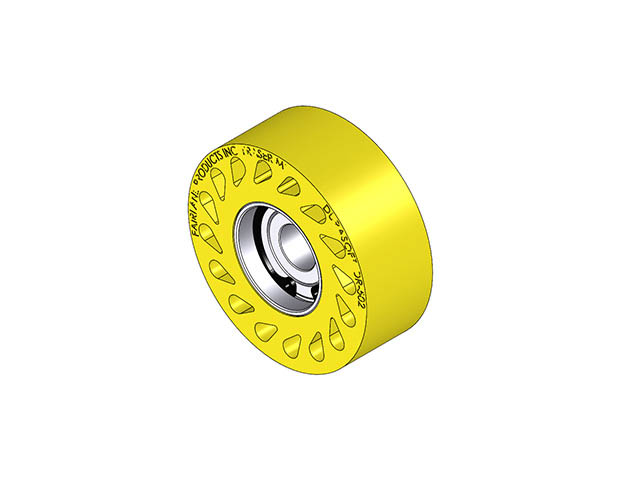

DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

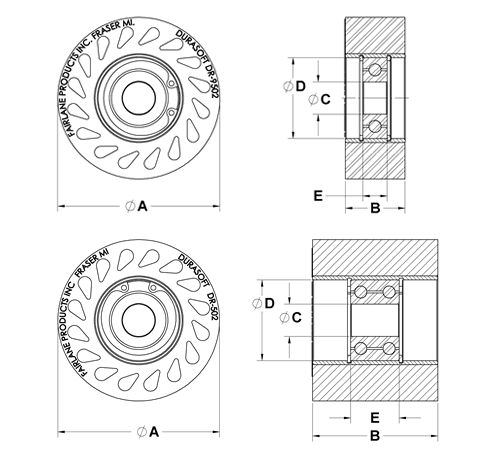

| Part # | A in | B in | C in | D in | E in | No. of Bearings | Bearing Type | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DR-502-35UR-BP | 2.50 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 35 | |
| DR-502-60UR-BP | 2.50 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 60 | |
| DR-502-80UR-BP | 2.50 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 80 | |
| DR-502-95UR-BP | 2.50 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 95 | |
| DR-754-20-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Neoprene | 20 | |
| DR-754-20W-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Nitrile | 20 | |
| DR-754-35-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Neoprene | 35 | |
| DR-754-35UR-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 35 | |
| DR-754-35W-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Nitrile | 35 | |
| DR-754-60UR-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 60 | |
| DR-754-80UR-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 80 | |
| DR-754-95UR-BP | 4.00 | 1.94 | .4997/.5000 | 1.1247/1.1250 | .7406/.7500 | 2 | F | Urethane | 95 | |
| DR-9502-35UR-BP | 2.50 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 35 | |
| DR-9502-60UR-BP | 2.50 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 60 | |
| DR-9502-80UR-BP | 2.50 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 80 | |
| DR-9502-95UR-BP | 2.50 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 95 | |
| DR-9754-20-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Neoprene | 20 | |
| DR-9754-20W-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Nitrile | 20 | |
| DR-9754-35-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Neoprene | 35 | |
| DR-9754-35UR-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 35 | |
| DR-9754-35W-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Nitrile | 35 | |
| DR-9754-60UR-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 60 | |
| DR-9754-80UR-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 80 | |
| DR-9754-95UR-BP | 4.00 | .92 | .4997/.5000 | 1.1247/1.1250 | .3703/.3750 | 1 | F | Urethane | 95 |
