Tapped Large (Metric) - Fairlane Products

Bumpers - Round - Large - Steel Core - Tapped - Metric (MRB)

MRB-3
Large Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 13mm

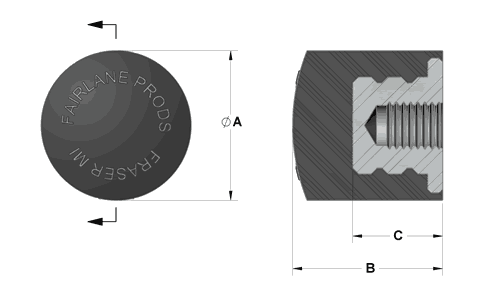

Part #	A Dia mm	B Length mm	C mm	Durometer Shore A	Thread mm	Thread Length mm	Material
▶ MRB-12	57	57	35.0	40	M20x2.5	25	Neoprene
▶ MRB-12UR	57	57	35.0	80	M20x2.5	25	Urethane
▶ MRB-14	57	57	35.0	40	M24x3.0	25	Neoprene
▶ MRB-14UR	57	57	35.0	80	M24x3.0	25	Urethane
▶ MRB-3	32	32	19.0	40	M10x1.5	13	Neoprene
▶ MRB-3UR	32	32	19.0	80	M10x1.5	13	Urethane
▶ MRB-4	32	32	19.0	40	M10x1.25	13	Neoprene
▶ MRB-4UR	32	32	19.0	80	M10x1.25	13	Urethane
▶ MRB-5	32	32	19.0	40	M12x1.75	13	Neoprene
▶ MRB-5UR	32	32	19.0	80	M12x1.75	13	Urethane
▶ MRB-6	32	32	19.0	40	M12x1.25	13	Neoprene
▶ MRB-6UR	32	32	19.0	80	M12x1.25	13	Urethane
▶ MRB-8	32	32	19.0	40	M16x2.0	13	Neoprene
▶ MRB-8UR	32	32	19.0	80	M16x2.0	13	Urethane
▶ MRB-9	45	42	22.5	40	M16x2.0	16	Neoprene
▶ MRB-9UR	45	42	22.5	80	M16x2.0	16	Urethane
