Quick Release Pin Flanged Receptacle - Rectangular - Metric (MREFR)
MREFR-05

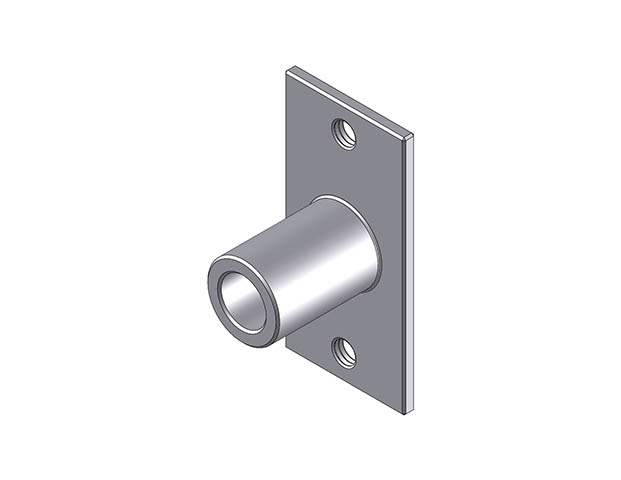

Ball Lock Pin Receptacle - Rectangle - 5 mm

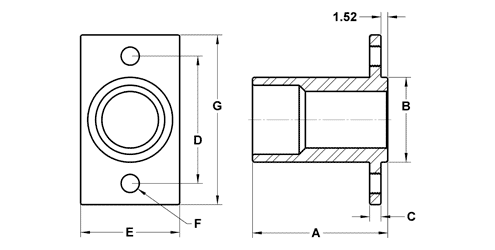

| Part # | Use With Pin Diameter mm | Flange Style mm | A mm | B mm | C mm | D mm | E mm | F Thread | G mm | Grip Length Reduction mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MREFR-05 | 5mm | Rectangle | 16.51 | 9.53 | 1.52 | 25 | 15.88 | M4 | 31.75 | 10 | |
| MREFR-06 | 6mm | Rectangle | 16.51 | 9.53 | 1.52 | 25 | 15.88 | M4 | 31.75 | 10 | |
| MREFR-08 | 8mm | Rectangle | 19.89 | 11.91 | 1.52 | 25 | 15.88 | M4 | 31.75 | 13 | |
| MREFR-10 | 10mm | Rectangle | 23.19 | 14.29 | 1.52 | 25 | 15.88 | M4 | 31.75 | 15 |
