Gripper Pads - Rectangular - Carbide - Diamond Serration - Inch (CR)
CR-2-EF
Carbide Gripper Pad - Rectangle - 1/4 in X 3/8 in X 1/8 in - Extra Fine

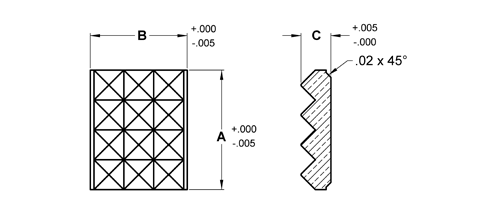

| Part # | A Length in | B Width in | C Height in | Tooth Pattern |
|
|---|---|---|---|---|---|
| CR-127-12 | 29/64 | 13/32 | 1/8 | Fine | |
| CR-127-4 | 29/64 | 13/32 | 1/8 | 4 Point | |
| CR-130-4 | 29/64 | 13/32 | 1/8 | Straight | |
| CR-145-5 | 29/64 | 13/32 | 1/8 | Angular | |
| CR-2-EF | 3/8 | 1/4 | 1/8 | EF | |
| CR-4 | 1 | 1/2 | 3/16 | Saw Tooth | |
| CR-4-EF | 1 | 1/2 | 3/16 | EF | |
| CR-6 | 1-1/2 | 3/4 | 1/4 | Saw Tooth | |
| CR-870 | 1/2 | 13/32 | 1/8 | Fine | |
| CR-870-EF | 1/2 | 13/32 | 1/8 | EF | |
| CR-870X156-EF | 1/2 | 13/32 | 5/32 | EF |
