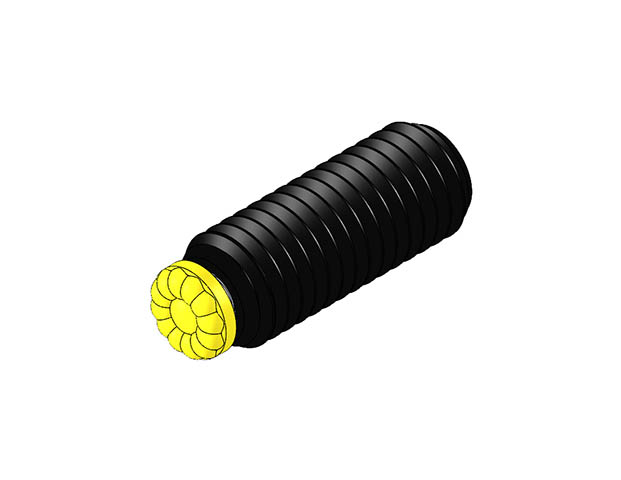

Full Threaded Swivots® Gripper Assembly - SofTop® Urethane Surface Cone - Metric (MTBU-FC-UR)
MTBU-10025-FC-35UR
Threaded Design Swivot - M10 X 1.5 X 25 mm - Sof-Top - 35 Dur

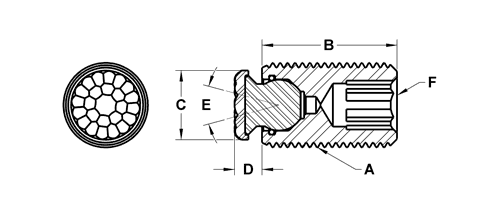

| Part # | A Thread mm | B Thread Length mm | C Contact Diameter mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Durometer Shore A | Urethane Thickness mm | Load Compression lbs | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTBU-10025-FC-35UR | M10x1.5 | 25 | 8 | 3.5 | 28 | 5 | 5 | 35 | 2 | 8 | MBUB-050-FC-35UR | |
| MTBU-10025-FC-60UR | M10x1.5 | 25 | 8 | 3.5 | 28 | 5 | 5 | 60 | 2 | 20 | MBUB-050-FC-60UR | |
| MTBU-10025-FC-80UR | M10x1.5 | 25 | 8 | 3.5 | 28 | 5 | 5 | 80 | 2 | 40 | MBUB-050-FC-80UR | |
| MTBU-10035-FC-35UR | M10x1.5 | 35 | 8 | 3.5 | 28 | 5 | 5 | 35 | 2 | 8 | MBUB-050-FC-35UR | |
| MTBU-10035-FC-60UR | M10x1.5 | 35 | 8 | 3.5 | 28 | 5 | 5 | 60 | 2 | 20 | MBUB-050-FC-60UR | |
| MTBU-10035-FC-80UR | M10x1.5 | 35 | 8 | 3.5 | 28 | 5 | 5 | 80 | 2 | 40 | MBUB-050-FC-80UR | |
| MTBU-10050-FC-35UR | M10x1.5 | 50 | 8 | 3.5 | 28 | 5 | 5 | 35 | 2 | 8 | MBUB-050-FC-35UR | |
| MTBU-10050-FC-60UR | M10x1.5 | 50 | 8 | 3.5 | 28 | 5 | 5 | 60 | 2 | 20 | MBUB-050-FC-60UR | |
| MTBU-10050-FC-80UR | M10x1.5 | 50 | 8 | 3.5 | 28 | 5 | 5 | 80 | 2 | 40 | MBUB-050-FC-80UR | |
| MTBU-12025-FC-35UR | M12x1.75 | 25 | 10 | 4 | 28 | 6 | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MTBU-12025-FC-60UR | M12x1.75 | 25 | 10 | 4 | 28 | 6 | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MTBU-12025-FC-80UR | M12x1.75 | 25 | 10 | 4 | 28 | 6 | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MTBU-12035-FC-35UR | M12x1.75 | 35 | 10 | 4 | 28 | 6 | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MTBU-12035-FC-60UR | M12x1.75 | 35 | 10 | 4 | 28 | 6 | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MTBU-12035-FC-80UR | M12x1.75 | 35 | 10 | 4 | 28 | 6 | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MTBU-12050-FC-35UR | M12x1.75 | 50 | 10 | 4 | 28 | 6 | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MTBU-12050-FC-60UR | M12x1.75 | 50 | 10 | 4 | 28 | 6 | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MTBU-12050-FC-80UR | M12x1.75 | 50 | 10 | 4 | 28 | 6 | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MTBU-16025-FC-35UR | M16x2.0 | 25 | 13 | 5 | 28 | 8 | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MTBU-16025-FC-60UR | M16x2.0 | 25 | 13 | 5 | 28 | 8 | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MTBU-16025-FC-80UR | M16x2.0 | 25 | 13 | 5 | 28 | 8 | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MTBU-16035-FC-35UR | M16x2.0 | 35 | 13 | 5 | 28 | 8 | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MTBU-16035-FC-60UR | M16x2.0 | 35 | 13 | 5 | 28 | 8 | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MTBU-16035-FC-80UR | M16x2.0 | 35 | 13 | 5 | 28 | 8 | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MTBU-16050-FC-35UR | M16x2.0 | 50 | 13 | 5 | 28 | 8 | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MTBU-16050-FC-60UR | M16x2.0 | 50 | 13 | 5 | 28 | 8 | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MTBU-16050-FC-80UR | M16x2.0 | 50 | 13 | 5 | 28 | 8 | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MTBU-20030-FC-35UR | M20x2.5 | 30 | 16 | 5 | 28 | 10 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MTBU-20030-FC-60UR | M20x2.5 | 30 | 16 | 5 | 28 | 10 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MTBU-20030-FC-80UR | M20x2.5 | 30 | 16 | 5 | 28 | 10 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MTBU-20050-FC-35UR | M20x2.5 | 50 | 16 | 5 | 28 | 10 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MTBU-20050-FC-60UR | M20x2.5 | 50 | 16 | 5 | 28 | 10 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MTBU-20050-FC-80UR | M20x2.5 | 50 | 16 | 5 | 28 | 10 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MTBU-20070-FC-35UR | M20x2.5 | 70 | 16 | 5 | 28 | 10 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MTBU-20070-FC-60UR | M20x2.5 | 70 | 16 | 5 | 28 | 10 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MTBU-20070-FC-80UR | M20x2.5 | 70 | 16 | 5 | 28 | 10 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MTBU-24040-FC-35UR | M24x3.0 | 40 | 21 | 6 | 24 | 10 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MTBU-24040-FC-60UR | M24x3.0 | 40 | 21 | 6 | 24 | 10 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MTBU-24040-FC-80UR | M24x3.0 | 40 | 21 | 6 | 24 | 10 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR | |
| MTBU-24080-FC-35UR | M24x3.0 | 80 | 21 | 6 | 24 | 10 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MTBU-24080-FC-60UR | M24x3.0 | 80 | 21 | 6 | 24 | 10 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MTBU-24080-FC-80UR | M24x3.0 | 80 | 21 | 6 | 24 | 10 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR |
