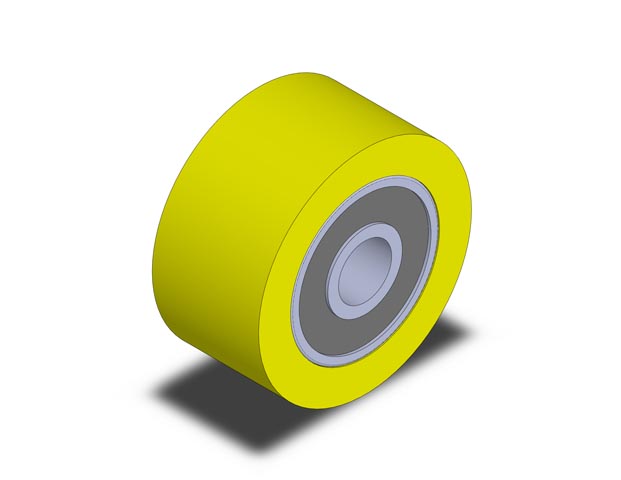

Urethane Covered Bearing Mount Rollers - Double Bearings -Metric
MCBD-052010-35UR
5mm 2RS x 20mm DIA x 10mm WD
| Part # | A mm | B mm | C mm | D (Ref) mm | Bearing Number mm | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|
| MCBD-052010-35UR | 20 | 10 | 5 | 3 | 605-2RS | 35 | |
| MCBD-052010-60UR | 20 | 10 | 5 | 3 | 605-2RS | 60 | |
| MCBD-052010-95UR | 20 | 10 | 5 | 3 | 605-2RS | 95 | |
| MCBD-062512-35UR | 25 | 12 | 6 | 3 | 606-2RS | 35 | |
| MCBD-062512-60UR | 25 | 12 | 6 | 3 | 606-2RS | 60 | |
| MCBD-062512-95UR | 25 | 12 | 6 | 3 | 606-2RS | 95 | |
| MCBD-083014-35UR | 30 | 14 | 8 | 4 | 608-2RS | 35 | |
| MCBD-083014-60UR | 30 | 14 | 8 | 4 | 608-2RS | 60 | |
| MCBD-083014-95UR | 30 | 14 | 8 | 4 | 608-2RS | 95 | |
| MCBD-093514-35UR | 35 | 14 | 9 | 6 | 609-2RS | 35 | |
| MCBD-093514-60UR | 35 | 14 | 9 | 6 | 609-2RS | 60 | |
| MCBD-093514-95UR | 35 | 14 | 9 | 6 | 609-2RS | 95 | |
| MCBD-103516-35UR | 35 | 16 | 10 | 5 | 6000-2RS | 35 | |
| MCBD-103516-60UR | 35 | 16 | 10 | 5 | 6000-2RS | 60 | |
| MCBD-103516-95UR | 35 | 16 | 10 | 5 | 6000-2RS | 95 | |
| MCBD-104016-35UR | 40 | 16 | 10 | 7 | 6000-2RS | 35 | |
| MCBD-104016-60UR | 40 | 16 | 10 | 7 | 6000-2RS | 60 | |
| MCBD-104016-95UR | 40 | 16 | 10 | 7 | 6000-2RS | 95 | |
| MCBD-124016-35UR | 40 | 16 | 12 | 6 | 6001-2RS | 35 | |
| MCBD-124016-60UR | 40 | 16 | 12 | 6 | 6001-2RS | 60 | |
| MCBD-124016-95UR | 40 | 16 | 12 | 6 | 6001-2RS | 95 | |
| MCBD-125016-35UR | 50 | 16 | 12 | 11 | 6001-2RS | 35 | |
| MCBD-125016-60UR | 50 | 16 | 12 | 11 | 6001-2RS | 60 | |
| MCBD-125016-95UR | 50 | 16 | 12 | 11 | 6001-2RS | 95 | |
| MCBD-154518-95UR | 45 | 18 | 15 | 7 | 6002-2RS | 95 | |
| MCBD-175020-95UR | 50 | 20 | 17 | 8 | 6003-2RS | 95 | |
| MCBD-206024-95UR | 60 | 24 | 20 | 9 | 6004-2RS | 95 | |
| MCBD-257024-95UR | 70 | 24 | 25 | 12 | 6005-2RS | 95 |
