Indexing Plungers - Adjustable Clamping Pins - Steel Plunger - Steel Housing (CP-P)

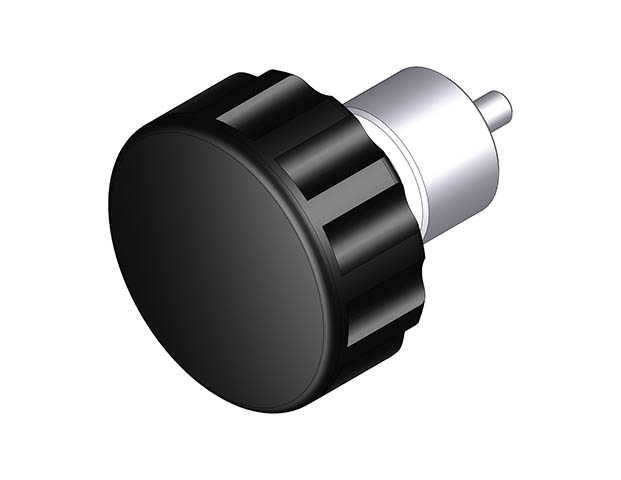

CP-C25P
Adjustable Clamping Pin - 1/4 in

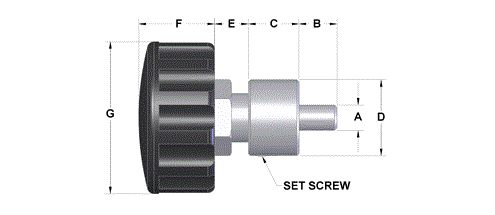

| Part # | A in | B in | C in | D in | E in | F in | G in | Thread Adjustment in |
|
|---|---|---|---|---|---|---|---|---|---|
| CP-C100P | 3/8 | 9/16 | 7/8 | 1-1/8 | 1/2 | 1-1/8 | 2-1/4 | 5/8 | |
| CP-C200P | 1/2 | 9/16 | 7/8 | 1-1/8 | 1/2 | 1-1/8 | 2-1/4 | 5/8 | |
| CP-C25P | 1/4 | 9/16 | 7/8 | 1-1/8 | 1/2 | 1-1/8 | 2-1/4 | 5/8 |
