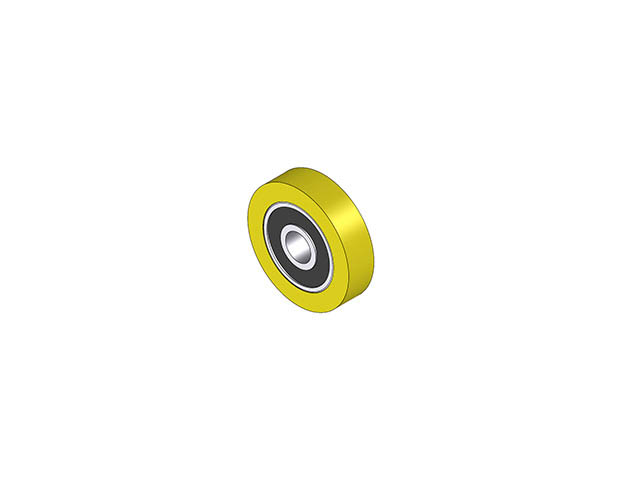

Urethane Covered Bearing Mount Rollers - Single Bearings - Metric
MCB-052005-35UR
5mm 2RS x 20mm DIA x 5mm WD
| Part # | A mm | B mm | C mm | D (Ref) mm | Bearing Number | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|
| MCB-052005-35UR | 20 | 5 | 5 | 3 | 605-2RS | 35 | |
| MCB-052005-60UR | 20 | 5 | 5 | 3 | 605-2RS | 60 | |
| MCB-052005-95UR | 20 | 5 | 5 | 3 | 605-2RS | 95 | |
| MCB-062506-35UR | 25 | 6 | 6 | 3 | 606-2RS | 35 | |
| MCB-062506-60UR | 25 | 6 | 6 | 3 | 606-2RS | 60 | |
| MCB-062506-95UR | 25 | 6 | 6 | 3 | 606-2RS | 95 | |
| MCB-083007-35UR | 30 | 7 | 8 | 4 | 608-2RS | 35 | |
| MCB-083007-60UR | 30 | 7 | 8 | 4 | 608-2RS | 60 | |
| MCB-083007-95UR | 30 | 7 | 8 | 4 | 608-2RS | 95 | |
| MCB-093507-35UR | 35 | 7 | 9 | 6 | 609-2RS | 35 | |
| MCB-093507-60UR | 35 | 7 | 9 | 6 | 609-2RS | 60 | |
| MCB-093507-95UR | 35 | 7 | 9 | 6 | 609-2RS | 95 | |
| MCB-103508-35UR | 35 | 8 | 10 | 5 | 6000-2RS | 35 | |
| MCB-103508-60UR | 35 | 8 | 10 | 5 | 6000-2RS | 60 | |
| MCB-103508-95UR | 35 | 8 | 10 | 5 | 6000-2RS | 95 | |
| MCB-104008-35UR | 40 | 8 | 10 | 7 | 6000-2RS | 35 | |
| MCB-104008-60UR | 40 | 8 | 10 | 7 | 6000-2RS | 60 | |
| MCB-104008-95UR | 40 | 8 | 10 | 7 | 6000-2RS | 95 | |
| MCB-124008-35UR | 40 | 8 | 12 | 6 | 6001-2RS | 35 | |
| MCB-124008-60UR | 40 | 8 | 12 | 6 | 6001-2RS | 60 | |
| MCB-124008-95UR | 40 | 8 | 12 | 6 | 6001-2RS | 95 | |
| MCB-125008-35UR | 50 | 8 | 12 | 11 | 6001-2RS | 35 | |
| MCB-125008-60UR | 50 | 8 | 12 | 11 | 6001-2RS | 60 | |
| MCB-125008-95UR | 50 | 8 | 12 | 11 | 6001-2RS | 95 | |
| MCB-154509-95UR | 45 | 9 | 15 | 7 | 6002-2RS | 95 | |
| MCB-175010-95UR | 50 | 10 | 17 | 8 | 6003-2RS | 95 | |
| MCB-206012-95UR | 60 | 12 | 20 | 9 | 6004-2RS | 95 | |
| MCB-257012-95UR | 70 | 12 | 25 | 12 | 6005-2RS | 95 |
