Small - Steel Core
RB-516-024-40M-8NH

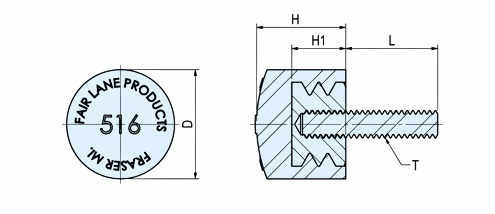

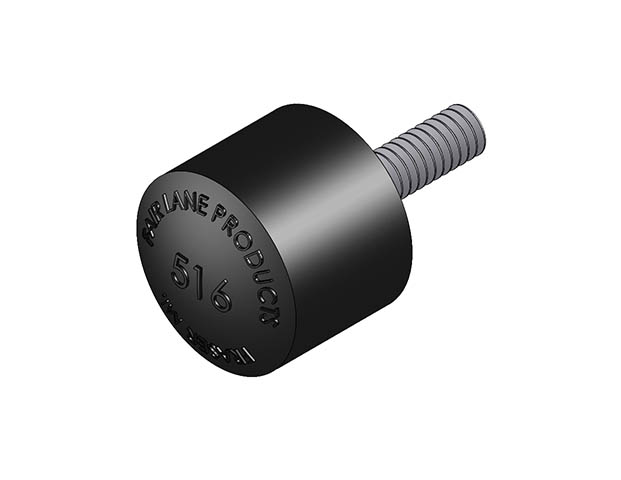

Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-24 X 5/8 in
| Part # | T Thread | D in | L in | H in | H1 in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|
| RB-516-024-40M-20NH | #10-24 | 3/4 | 1-3/8 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-024-40M-8NH | #10-24 | 3/4 | 5/8 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-024M-20NH | #10-24 | 3/4 | 1-3/8 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-024M-8NH | #10-24 | 3/4 | 5/8 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-024URM-20NH | #10-24 | 3/4 | 1-3/8 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-024URM-8NH | #10-24 | 3/4 | 5/8 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-032-40M-20NH | #10-32 | 3/4 | 1-3/8 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-032-40M-8NH | #10-32 | 3/4 | 5/8 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-032M-20NH | #10-32 | 3/4 | 1-3/8 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-032M-8NH | #10-32 | 3/4 | 5/8 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-032URM-20NH | #10-32 | 3/4 | 1-3/8 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-032URM-8NH | #10-32 | 3/4 | 5/8 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-120-40M-20NH | 1/4-20 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-120-40M-8NH | 1/4-20 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-120M-20NH | 1/4-20 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-120M-8NH | 1/4-20 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-120URM-20NH | 1/4-20 | 3/4 | 1-7/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-120URM-8NH | 1/4-20 | 3/4 | 11/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-128-40M-20NH | 1/4-28 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-128-40M-8NH | 1/4-28 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-128M-20NH | 1/4-28 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-128M-8NH | 1/4-28 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-128URM-20NH | 1/4-28 | 3/4 | 1-7/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-128URM-8NH | 1/4-28 | 3/4 | 11/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-518-40M-20NH | 5/16-18 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-518-40M-8NH | 5/16-18 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-524-40M-20NH | 5/16-24 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-524-40M-8NH | 5/16-24 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 40 | |
| RB-516-524M-20NH | 5/16-24 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-524M-8NH | 5/16-24 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-524URM-20NH | 5/16-24 | 3/4 | 1-7/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-524URM-8NH | 5/16-24 | 3/4 | 11/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-M-20NH | 5/16-18 | 3/4 | 1-7/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-M-8NH | 5/16-18 | 3/4 | 11/16 | 5/8 | 3/8 | Neoprene | 70 | |
| RB-516-URM-20NH | 5/16-18 | 3/4 | 1-7/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-URM-8NH | 5/16-18 | 3/4 | 11/16 | 5/8 | 3/8 | Urethane | 80 | |
| RB-516-WM-20NH | 5/16-18 | 3/4 | 1-7/16 | 5/8 | 3/8 | Nitrile | 70 | |
| RB-516-WM-8NH | 5/16-18 | 3/4 | 11/16 | 5/8 | 3/8 | Nitrile | 70 |
