Small - Steel Core
MRB-5166X15NH

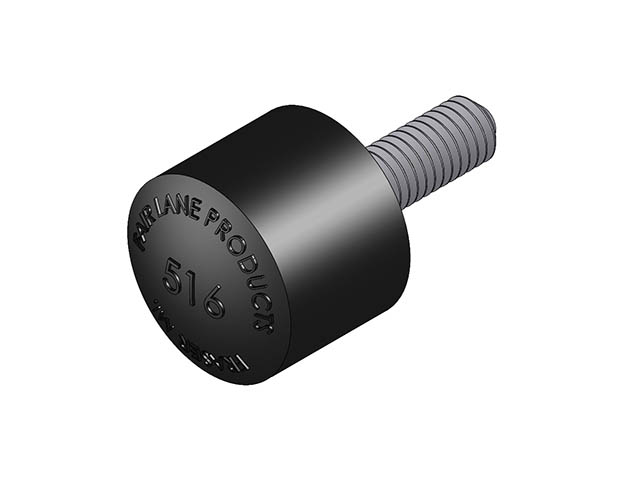

Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - M6X1.0 X 18 MM

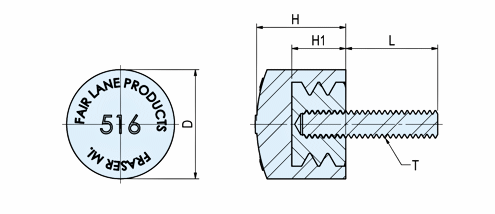

| Part # | T Thread | D mm | L mm | H mm | H1 mm | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|
| MRB-5166URX15NH | M6X1.0 | 19 | 18 | 16 | 9 | Urethane | 80 | |
| MRB-5166URX30NH | M6X1.0 | 19 | 33 | 16 | 9 | Urethane | 80 | |
| MRB-5166X15NH | M6X1.0 | 19 | 18 | 16 | 9 | Neoprene | 70 | |
| MRB-5166X30NH | M6X1.0 | 19 | 33 | 16 | 9 | Neoprene | 70 | |
| MRB-5168URX15NH | M8X1.25 | 19 | 19 | 16 | 9 | Urethane | 80 | |
| MRB-5168URX30NH | M8X1.25 | 19 | 34 | 16 | 9 | Urethane | 80 | |
| MRB-5168X15NH | M8X1.25 | 19 | 19 | 16 | 9 | Neoprene | 70 | |
| MRB-5168X30NH | M8X1.25 | 19 | 34 | 16 | 9 | Neoprene | 70 |
