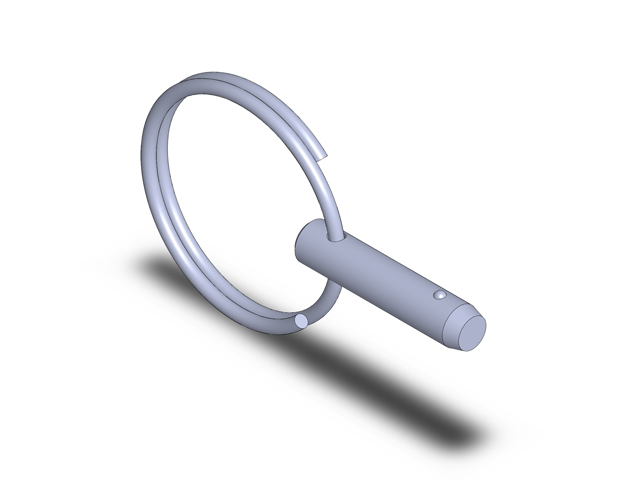

Detent Pin - Ring Handle - Stainless Steel (DCS)
DCS-18-050
Detent Pin - Ring Handle - 303 Stainless Steel - 3/16 in Dia X 0.50 in
| Part # | D in | D1 in | L - Grip Length in | L1 in | L2 in | W in | V Degrees | Pull-Out Strength | Min. Single Shear Strength |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DCS-100-200 | 1 | 1.5 | 2 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 79,340 | |
| DCS-100-250 | 1 | 1.5 | 2.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 79,340 | |
| DCS-100-300 | 1 | 1.5 | 3 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 79,340 | |
| DCS-100-350 | 1 | 1.5 | 3.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 79,340 | |
| DCS-18-050 | 3/16 | 1.00 | 0.5 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-080 | 3/16 | 1.00 | 0.8 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-100 | 3/16 | 1.00 | 1 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-130 | 3/16 | 1.00 | 1.3 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-150 | 3/16 | 1.00 | 1.5 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-200 | 3/16 | 1.00 | 2 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-250 | 3/16 | 1.00 | 2.5 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-18-300 | 3/16 | 1.00 | 3 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,740 | |
| DCS-25-050 | 1/4 | 1.00 | 0.5 | 0.22 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-080 | 1/4 | 1.00 | 0.8 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-100 | 1/4 | 1.00 | 1 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-130 | 1/4 | 1.00 | 1.3 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-150 | 1/4 | 1.00 | 1.5 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-200 | 1/4 | 1.00 | 2 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-250 | 1/4 | 1.00 | 2.5 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-25-300 | 1/4 | 1.00 | 3 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,870 | |
| DCS-31-080 | 5/16 | 1.00 | 0.8 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-100 | 5/16 | 1.00 | 1 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-130 | 5/16 | 1.00 | 1.3 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-150 | 5/16 | 1.00 | 1.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-200 | 5/16 | 1.00 | 2 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-250 | 5/16 | 1.00 | 2.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-300 | 5/16 | 1.00 | 3 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-350 | 5/16 | 1.00 | 3.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-31-400 | 5/16 | 1.00 | 4 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 7,590 | |
| DCS-37-080 | 3/8 | 1.00 | 0.8 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-100 | 3/8 | 1.00 | 1 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-130 | 3/8 | 1.00 | 1.3 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-150 | 3/8 | 1.00 | 1.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-200 | 3/8 | 1.00 | 2 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-250 | 3/8 | 1.00 | 2.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-300 | 3/8 | 1.00 | 3 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-350 | 3/8 | 1.00 | 3.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-400 | 3/8 | 1.00 | 4 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-450 | 3/8 | 1.00 | 4.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-37-500 | 3/8 | 1.00 | 5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 11,020 | |
| DCS-50-100 | 1/2 | 1.25 | 1 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-130 | 1/2 | 1.25 | 1.3 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-150 | 1/2 | 1.25 | 1.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-200 | 1/2 | 1.25 | 2 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-250 | 1/2 | 1.25 | 2.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-300 | 1/2 | 1.25 | 3 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-350 | 1/2 | 1.25 | 3.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-400 | 1/2 | 1.25 | 4 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-450 | 1/2 | 1.25 | 4.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-500 | 1/2 | 1.25 | 5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-550 | 1/2 | 1.25 | 5.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-50-600 | 1/2 | 1.25 | 6 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 19,560 | |
| DCS-62-200 | 5/8 | 1.25 | 2 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-250 | 5/8 | 1.25 | 2.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-300 | 5/8 | 1.25 | 3 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-350 | 5/8 | 1.25 | 3.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-400 | 5/8 | 1.25 | 4 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-450 | 5/8 | 1.25 | 4.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-500 | 5/8 | 1.25 | 5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-62-600 | 5/8 | 1.25 | 6 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 30,850 | |
| DCS-75-200 | 3/4 | 1.5 | 2 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-250 | 3/4 | 1.5 | 2.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-300 | 3/4 | 1.5 | 3 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-350 | 3/4 | 1.5 | 3.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-400 | 3/4 | 1.5 | 4 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-450 | 3/4 | 1.5 | 4.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-500 | 3/4 | 1.5 | 5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 | |
| DCS-75-600 | 3/4 | 1.5 | 6 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 44,020 |
