BUMPERS - CUSTOM CUT - ALUMINUM PLATE - C'BORE MOUNT - URETHANE (RB)

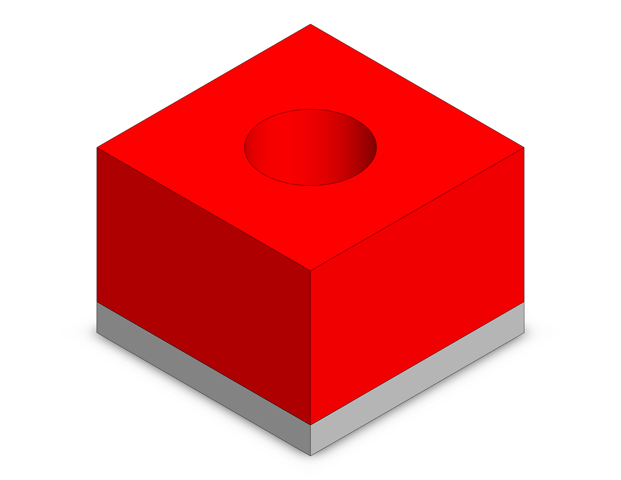

RB-161612-141UR
Bumper - Urethane - C'Bore - Aluminum Plate - 1 IN L X 1 IN W X 3/4 IN H
| Part # | A in | B in | C in | D in | E in | F in | G in | G C'Bore in | Number of Holes |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RB-161612-141UR | 1 | 1 | 3/4 | 1/2 | - | 1/2 | 9/32 | 7/16 | 1 | |
| RB-241612-142UR | 1-1/2 | 1 | 3/4 | 3/8 | 3/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-242416-142UR | 1-1/2 | 1-1/2 | 1 | 3/8 | 3/4 | 3/4 | 9/32 | 7/16 | 2 | |
| RB-281628-142UR | 1-3/4 | 1 | 1-3/4 | 3/8 | 1 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-321608-142UR | 2 | 1 | 1/2 | 3/8 | 1-1/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-321612-142UR | 2 | 1 | 3/4 | 3/8 | 1-1/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-321616-142UR | 2 | 1 | 1 | 3/8 | 1-1/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-321624-142UR | 2 | 1 | 1-1/2 | 3/8 | 1-1/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-323216-142UR | 2 | 2 | 1 | 3/8 | 1-1/4 | 1 | 9/32 | 7/16 | 2 | |
| RB-402012-142UR | 2-1/2 | 1-1/4 | 3/4 | 3/8 | 1-3/4 | 5/8 | 9/32 | 7/16 | 2 | |
| RB-402016-142UR | 2-1/2 | 1-1/4 | 1 | 3/8 | 1-3/4 | 5/8 | 9/32 | 7/16 | 2 | |
| RB-402024-142UR | 2-1/2 | 1-1/4 | 1-1/2 | 3/8 | 1-3/4 | 5/8 | 9/32 | 7/16 | 2 | |
| RB-404016-144UR | 2-1/2 | 2-1/2 | 1 | 1/2 | 1-1/2 | 1/2 | 9/32 | 7/16 | 4 | |
| RB-481628-382UR | 3 | 1 | 1-3/4 | 5/8 | 1-3/4 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-482412-142UR | 3 | 1-1/2 | 3/4 | 1/2 | 2 | 3/4 | 13/32 | 7/16 | 2 | |
| RB-482416-142UR | 3 | 1-1/2 | 1 | 1/2 | 2 | 3/4 | 9/32 | 7/16 | 2 | |
| RB-482416-5162UR | 3 | 1-1/2 | 1 | 1/2 | 2 | 3/4 | 11/32 | 1/2 | 2 | |
| RB-482424-142UR | 3 | 1-1/2 | 1-1/2 | 1/2 | 2 | 3/4 | 9/32 | 7/16 | 2 | |
| RB-484824-144UR | 3 | 3 | 1-1/2 | 1/2 | 2 | 1/2 | 9/32 | 7/16 | 4 | |
| RB-641612-142UR | 4 | 1 | 3/4 | 1 1/2 | 1 | 1/2 | 9/32 | 7/16 | 2 | |
| RB-646424-144UR | 4 | 4 | 1-1/2 | 1/2 | 3 | 1/2 | 9/32 | 7/16 | 4 |
