Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Inch (CT)
CT-830

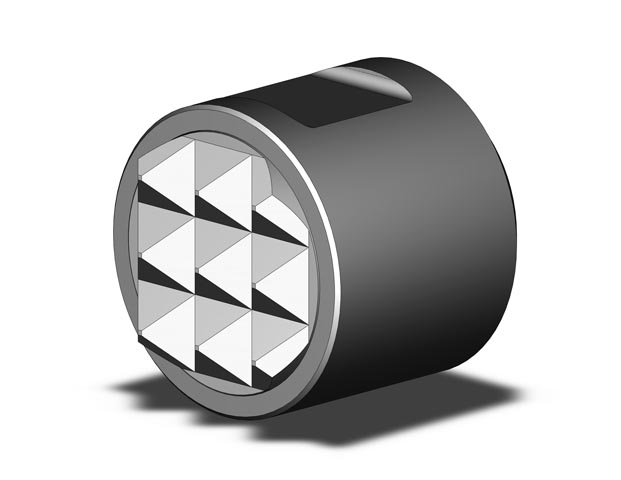

Carbide Tipped Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine

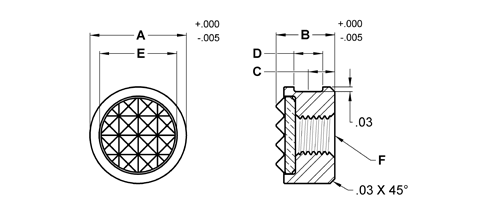

| Part # | A OD in | B Height in | C Flat Position in | D Flat in | E Contact Diameter in | F Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|---|
| CT-071 | 5/8 | 5/8 | Keyway | – | 1/2 | 1/4-28 | Fine | |
| CT-071-4 | 5/8 | 5/8 | Keyway | – | 1/2 | 1/4-28 | 4 Point | |
| CT-071-EF | 5/8 | 5/8 | Keyway | – | 1/2 | 1/4-28 | EF | |
| CT-830 | 3/8 | 3/8 | 11/64 | 3/16 | 5/16 | #10-32 | EF | |
| CT-830-4 | 3/8 | 3/8 | 11/64 | 3/16 | 5/16 | #10-32 | 4 Point | |
| CT-835 | 3/8 | 1/2 | 15/64 | 3/16 | 5/16 | #10-32 | EF | |
| CT-835-4 | 3/8 | 1/2 | 15/64 | 3/16 | 5/16 | #10-32 | 4 Point | |
| CT-840 | 1/2 | 1/2 | 15/64 | 3/16 | 3/8 | #10-32 | Fine | |
| CT-840-4 | 1/2 | 1/2 | 15/64 | 3/16 | 3/8 | #10-32 | 4 Point | |
| CT-840-EF | 1/2 | 1/2 | 15/64 | 3/16 | 3/8 | #10-32 | EF | |
| CT-841 | 1/2 | 3/8 | 11/64 | 3/16 | 3/8 | #10-32 | Fine | |
| CT-841-4 | 1/2 | 3/8 | 11/64 | 3/16 | 3/8 | #10-32 | 4 Point | |
| CT-841-EF | 1/2 | 3/8 | 11/64 | 3/16 | 3/8 | #10-32 | EF | |
| CT-842 | 1/2 | .651 | 19/64 | 3/16 | 3/8 | #10-32 | Fine | |
| CT-842-4 | 1/2 | .651 | 19/64 | 3/16 | 3/8 | #10-32 | 4 Point | |
| CT-842-EF | 1/2 | .651 | 19/64 | 3/16 | 3/8 | #10-32 | EF | |
| CT-844 | 1/2 | 1/2 | Keyway | – | 3/8 | #10-32 | Fine | |
| CT-844-4 | 1/2 | 1/2 | Keyway | – | 3/8 | #10-32 | 4 Point | |
| CT-844-EF | 1/2 | 1/2 | Keyway | – | 3/8 | #10-32 | EF | |
| CT-850 | 5/8 | 3/8 | 11/64 | 3/16 | 1/2 | 1/4-28 | Fine | |
| CT-850-EF | 5/8 | 3/8 | 11/64 | 3/16 | 1/2 | 1/4-28 | EF | |
| CT-855 | 5/8 | 1/2 | 15/64 | 3/16 | 1/2 | 1/4-28 | Fine | |
| CT-855-EF | 5/8 | 1/2 | 15/64 | 3/16 | 1/2 | 1/4-28 | EF | |
| CT-860 | 3/4 | 3/8 | 11/64 | 3/16 | 5/8 | 1/4-28 | Fine | |
| CT-860-EF | 3/4 | 3/8 | 11/64 | 3/16 | 5/8 | 1/4-28 | EF | |
| CT-862 | 3/4 | 1/2 | 15/64 | 3/16 | 5/8 | 1/4-28 | Fine | |
| CT-862-EF | 3/4 | 1/2 | 15/64 | 3/16 | 5/8 | 1/4-28 | EF | |
| CT-865 | 1 | 3/8 | 11/64 | 3/16 | 3/4 | 1/4-28 | Fine | |
| CT-865-EF | 1 | 3/8 | 11/64 | 3/16 | 3/4 | 1/4-28 | EF | |
| MCT-840-EF | 1/2 | 1/2 | 15/64 | 3/16 | 3/8 | M6x1.0 | EF | |
| MCT-841-EF | 1/2 | 3/8 | 11/64 | 3/16 | 3/8 | M6x1.0 | EF | |
| MCT-842-EF | 1/2 | .651 | 19/64 | 3/16 | 3/8 | M6x1.0 | EF | |
| MCT-850-EF | 5/8 | 3/8 | 11/64 | 3/16 | 1/2 | M6x1.0 | EF | |
| MCT-860-EF | 3/4 | 3/8 | 11/64 | 3/16 | 5/8 | M6x1.0 | EF |
