Jaw Sets For TG GripSert Inserts
TGJ-06P

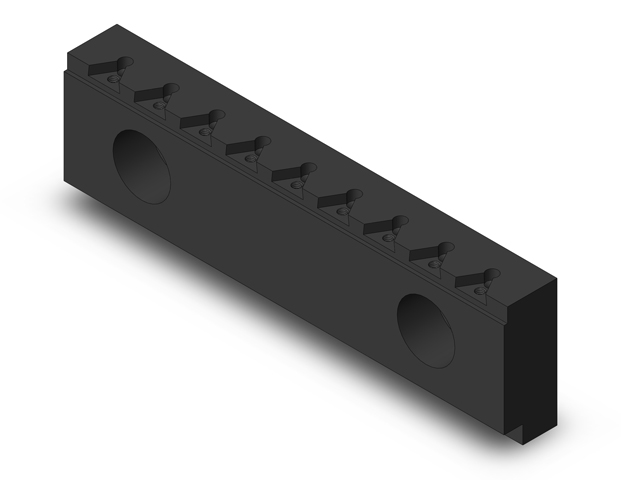

Jaw Set - TriGrip Workholding Inserts System - Retrofit Kurt 6'' - With Parallels

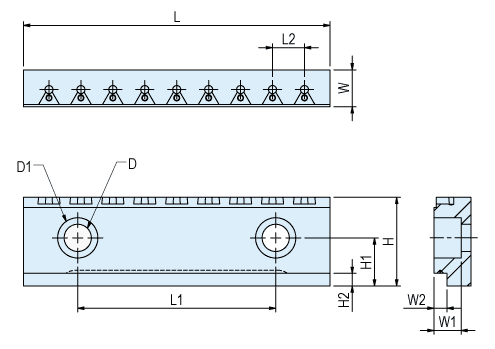

| Part # | D mm | D1 mm | L mm | L1 mm | L2 mm | W mm | W1 mm | W2 mm | H mm | H1 mm | H2 mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGJ-06P | 13.5 | 20.0 | 152.4 | 98.4 | 15.875 | 18.4 | 13.5 | 6.5 | 44.1 | 23.6 | 6.5 |
