TFC-120603-SSR3Z-C

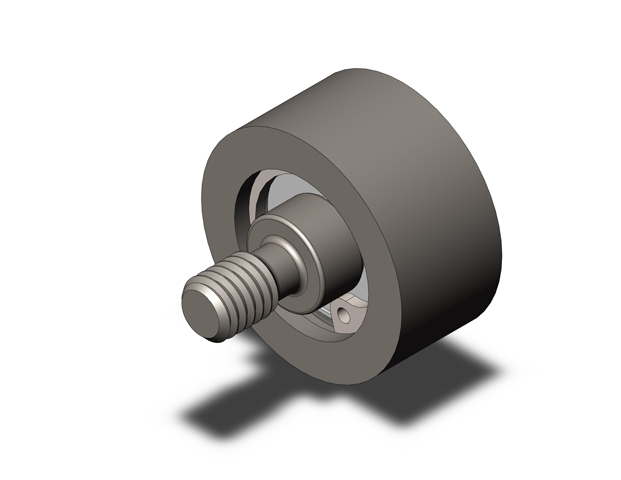

Bearing Wheel - Flat - 303 SS - Stud Mount - 3/4 in Dia - 3/8 in W - 3/16 in Bore - R3 ZZ Stainless Steel Metal Shield Bearing
| Part # | T Thread in | D in | D2 in | L in | W in | W1 in | K in | Wheel Type | Wheel Material | Bearing Type | Bearing Material |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCC-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Stainless 303 | Stainless | Metal Shield | |
| TCC-140604-SSR4R-C | #1/4-20 | 7/8 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-140604-SSR4Z-C | #1/4-20 | 7/8 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Stainless 303 | Stainless | Metal Shield | |
| TCC-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Stainless 303 | Stainless | Metal Shield | |
| TCC-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-200804-SS1602R-C | #1/4-20 | 1-1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-200905-SS1603R-C | #5/16-18 | 1-1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-200906-SS1604R-C | #3/8-24 | 1-1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TCC-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Stainless 303 | Stainless | Metal Shield | |
| TCC-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Stainless 303 | Stainless | Metal Shield | |
| TFC-140604-SSR4R-C | #1/4-20 | 7/8 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-140604-SSR4Z-C | #1/4-20 | 7/8 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Stainless 303 | Stainless | Metal Shield | |
| TFC-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Stainless 303 | Stainless | Metal Shield | |
| TFC-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-200905-SS1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-200906-SS1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TFC-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Stainless 303 | Stainless | Metal Shield | |
| TFC-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Stainless 303 | Stainless | Metal Shield | |
| TRC-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-200804-SS1602R-C | #1/4-20 | 1-1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Stainless 303 | Stainless | Rubber Sealed | |
| TRC-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Stainless 303 | Stainless | Metal Shield |
