TFP-120603-R3Z

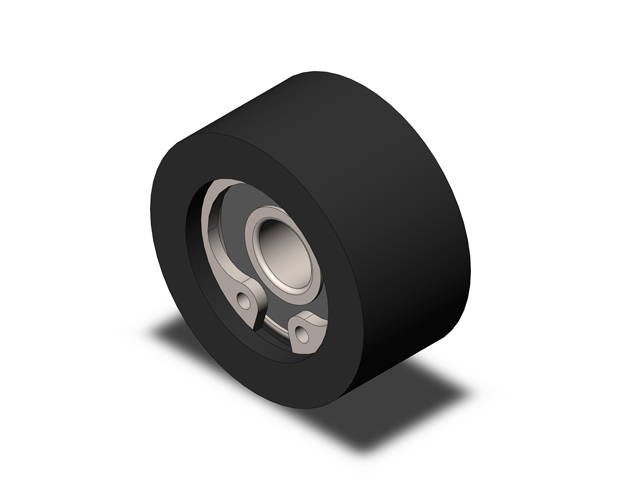

Bearing Wheel - Flat - Polyacetal - 3/4 in Dia - 3/8 in W - 3/16 in Bore - R3 ZZ Metal Shield Bearing
| Part # | D in | D1 in | W in | Wheel Type | Wheel Material | Bearing Type | Bearing Material |
|
|---|---|---|---|---|---|---|---|---|
| TCP-120603-R3R | 0.75 | 3/16 | 3/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-120603-R3Z | 0.75 | 3/16 | 3/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-120603-SSR3Z | 0.75 | 3/16 | 3/8 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-140604-R4R | 0.875 | 1/4 | 3/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-140604-R4Z | 0.875 | 1/4 | 3/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-140604-SSR4R | 0.875 | 1/4 | 3/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-140604-SSR4Z | 0.875 | 1/4 | 3/8 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-160604-R4R | 1 | 1/4 | 3/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-160604-R4Z | 1 | 1/4 | 3/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-160604-SSR4R | 1 | 1/4 | 3/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-160604-SSR4Z | 1 | 1/4 | 3/8 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-160704-1602Z | 1 | 1/4 | 7/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-160804-1602R | 1 | 1/4 | 1/2 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-160804-SS1602R | 1 | 1/4 | 1/2 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-180704-1602Z | 1 -1/8 | 1/4 | 7/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-180804-1602R | 1 -1/8 | 1/4 | 1/2 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-180804-SS1602R | 1 -1/8 | 1/4 | 1/2 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200704-1602Z | 1 -1/4 | 1/4 | 7/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200804-1602R | 1 -1/4 | 1/4 | 1/2 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200804-SS1602R | 1 -1/4 | 1/4 | 1/2 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200805-1603Z | 1 -1/4 | 5/16 | 1/2 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200806-1604Z | 1 -1/4 | 3/8 | 1/2 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200905-1603R | 1 -1/4 | 5/16 | 9/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200905-SS1603R | 1 -1/4 | 5/16 | 9/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200906-1604R | 1 -1/4 | 3/8 | 9/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200906-SS1604R | 1 -1/4 | 3/8 | 9/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240805-1603Z | 1 -1/2 | 5/16 | 1/2 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240806-1604Z | 1 -1/2 | 3/8 | 1/2 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240905-1603R | 1 -1/2 | 5/16 | 9/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240905-SS1603R | 1 -1/2 | 5/16 | 9/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240906-1604R | 1 -1/2 | 3/8 | 9/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240906-SS1604R | 1 -1/2 | 3/8 | 9/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240908-R8R | 1 -1/2 | 1/2 | 9/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240908-R8Z | 1 -1/2 | 1/2 | 9/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240908-SSR8R | 1 -1/2 | 1/2 | 9/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240908-SSR8Z | 1 -1/2 | 1/2 | 9/16 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-241008-1616R | 1 -1/2 | 1/2 | 5/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-241008-1616Z | 1 -1/2 | 1/2 | 5/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-241008-SS1616R | 1 -1/2 | 1/2 | 5/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TFP-120603-R3R | 0.75 | 3/16 | 3/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-120603-R3Z | 0.75 | 0.1875 | 3/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-120603-SSR3Z | 0.75 | 3/16 | 3/8 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-140604-R4R | 0.875 | 1/4 | 3/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-140604-R4Z | 0.875 | 0.25 | 3/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-140604-SSR4R | 0.875 | 1/4 | 3/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-140604-SSR4Z | 0.875 | 1/4 | 3/8 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-160604-R4R | 1 | 1/4 | 3/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-160604-R4Z | 1 | 1/4 | 3/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-160604-SSR4R | 1 | 1/4 | 3/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-160604-SSR4Z | 1 | 1/4 | 3/8 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-160704-1602Z | 1 | 1/4 | 0.4375 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-160804-1602R | 1 | 1/4 | 1/2 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-160804-SS1602R | 1 | 1/4 | 1/2 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-180704-1602Z | 1.125 | 1/4 | 7/16 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-180804-1602R | 1.125 | 1/4 | 1/2 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-180804-SS1602R | 1.125 | 1/4 | 1/2 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200704-1602Z | 1.25 | 1/4 | 7/16 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200804-1602R | 1.25 | 1/4 | 1/2 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200804-SS1602R | 1.25 | 1/4 | 1/2 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200805-1603Z | 1.25 | 0.3125 | 1/2 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200806-1604Z | 1.25 | 0.375 | 1/2 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200905-1603R | 1.25 | 5/16 | 0.5625 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200905-SS1603R | 1.25 | 5/16 | 9/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200906-1604R | 1.25 | 3/8 | 9/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200906-SS1604R | 1.25 | 3/8 | 9/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240805-1603Z | 1.5 | 5/16 | 1/2 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240806-1604Z | 1.5 | 3/8 | 1/2 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240905-1603R | 1.5 | 5/16 | 9/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240905-SS1603R | 1.5 | 5/16 | 9/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240906-1604R | 1.5 | 3/8 | 9/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240906-SS1604R | 1.5 | 3/8 | 9/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240908-R8R | 1.5 | 1/2 | 9/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240908-R8Z | 1.5 | 0.5 | 9/16 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240908-SSR8R | 1.5 | 1/2 | 9/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240908-SSR8Z | 1.5 | 1/2 | 9/16 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-241008-1616R | 1.5 | 1/2 | 0.625 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-241008-1616Z | 1.5 | 1/2 | 5/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-241008-SS1616R | 1.5 | 1/2 | 5/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TRP-160604-R4R | 1 | 1/4 | 3/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-160604-R4Z | 1 | 1/4 | 3/8 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-160604-SSR4R | 1 | 1/4 | 3/8 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-160604-SSR4Z | 1 | 1/4 | 3/8 | Radial | Polyacetal | Stainless | Metal Shield | |
| TRP-160804-1602R | 1 | 1/4 | 1/2 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-160804-SS1602R | 1 | 1/4 | 1/2 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-180704-1602Z | 1 -1/8 | 1/4 | 7/16 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-180804-1602R | 1 -1/8 | 1/4 | 1/2 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-180804-SS1602R | 1 -1/8 | 1/4 | 1/2 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-200704-1602Z | 1 -1/4 | 1/4 | 7/16 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-200804-1602R | 1 -1/4 | 1/4 | 1/2 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-200804-SS1602R | 1 -1/4 | 1/4 | 1/2 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240805-1603Z | 1 -1/2 | 5/16 | 1/2 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240806-1604Z | 1 -1/2 | 3/8 | 1/2 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240905-1603R | 1 -1/2 | 5/16 | 9/16 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240905-SS1603R | 1 -1/2 | 5/16 | 9/16 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240906-1604R | 1 -1/2 | 3/8 | 9/16 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240906-SS1604R | 1 -1/2 | 3/8 | 9/16 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240908-R8R | 1 -1/2 | 1/2 | 9/16 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240908-R8Z | 1 -1/2 | 1/2 | 9/16 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240908-SSR8R | 1 -1/2 | 1/2 | 9/16 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240908-SSR8Z | 1 -1/2 | 1/2 | 9/16 | Radial | Polyacetal | Stainless | Metal Shield |
