GRIPSHAPE FINGER BLANKS - G306 - ALUMINUM - SINGLE & DOUBLE - For SMC MHS2 and MHSJ3
G306.041.012X040X045

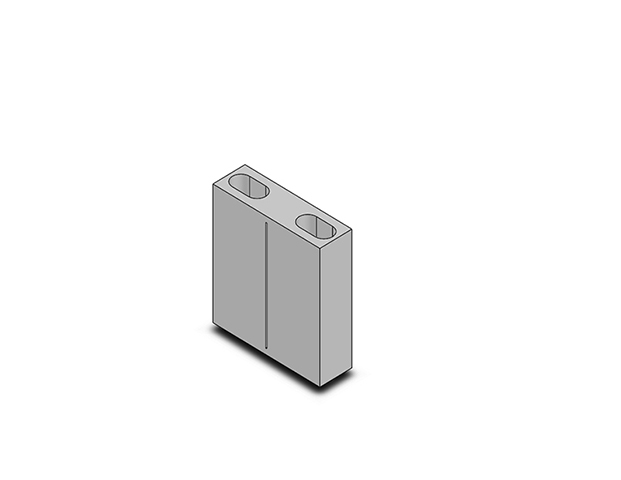

GRIPSHAPE FINGER BLANK - 012X040X045 - UN-CUT PAIR - ALUMINUM
| Part # | Type | For Gripper Module |
||||||
|---|---|---|---|---|---|---|---|---|
| G306.041.012X040X045 | A | 43 | 45 | 40 | 23 | 12 | MHS2-16 | |
| G306.042.012X045X045 | A | 43 | 45 | 45 | 26 | 12 | MHS2-20 | |
| G306.043.012X051X048 | A | 46 | 48 | 51 | 31 | 12 | MHS2-25 | |
| G306.044.015X065X060 | A | 58 | 60 | 65 | 39 | 15 | MHS2-32 | |
| G306.045.015X071X060 | A | 58 | 60 | 71 | 43 | 15 | MHS2-40 | |
| G306.046.018X080X072 | A | 70 | 72 | 80 | 48 | 18 | MHS2-50 | |
| G306.047.018X098X072 | A | 69 | 72 | 98 | 60 | 18 | MHS2-63 | |
| G306S.041.012X018X045 | B | 43 | 45 | 18 | 9.5 | 12 | MHS2-16 / MHSJ3-16 | |
| G306S.042.012X020X045 | B | 43 | 45 | 20 | 10.5 | 12 | MHS2-20 / MHSJ3-20 | |
| G306S.043.012X023X048 | B | 46 | 48 | 23 | 13 | 12 | MHS2-25 / MHSJ3-25 | |
| G306S.044.015X030X060 | B | 58 | 60 | 30 | 17 | 15 | MHS2-32 / MHSJ3-32 | |
| G306S.045.015X033X060 | B | 58 | 60 | 33 | 19 | 15 | MHS2-40 / MHSJ3-40 | |
| G306S.046.018X038X072 | B | 70 | 72 | 38 | 22 | 18 | MHS2-50 / MHSJ3-50 | |
| G306S.047.018X047X072 | B | 69 | 72 | 47 | 28 | 18 | MHS2-63 / MHSJ3-63 | |
| G306S.048.024X062X095 | B | 91 | 95 | 62 | 38 | 24 | MHSJ3-80 |
