GRIPSHAPE FINGER BLANKS - G308 - ALUMINUM - SINGLE & DOUBLE - For Destaco Series RP

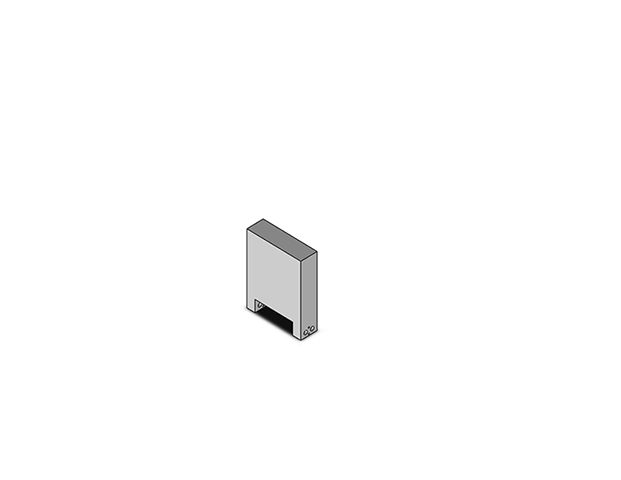

G308.035.020X066X080
GRIPSHAPE FINGER BLANK - 020X066X080 - UN-CUT PAIR - ALUMINUM
| Part # | Type | For Gripper Module |
||||||
|---|---|---|---|---|---|---|---|---|
| G308.035.020X066X080 | A | 66.5 | 80 | 66 | 46 | 20 | RP-11 | |
| G308.036.022X084X105 | A | 87.5 | 105 | 84 | 60 | 22 | RP-12 | |
| G308.037.029X103X120 | A | 93 | 120 | 103 | 75 | 29 | RP-15 | |
| G308.038.034X140X157 | A | 124 | 157 | 140 | 96 | 34 | RP-17 | |
| G308.039.048X210X245 | A | 195 | 245 | 210 | 156 | 48 | RP-18 | |
| G308.040.072X290X245 | A | 182 | 245 | 290 | 230 | 72 | RP-19 | |
| G308S.035.020X031X080 | B | 66.5 | 80 | 31 | 21 | 20 | RP-11 | |
| G308S.036.022X040X105 | B | 87.5 | 105 | 40 | 28 | 22 | RP-12 | |
| G308S.037.029X049X120 | B | 93 | 120 | 49 | 35 | 29 | RP-15 | |
| G308S.038.034X068X157 | B | 124 | 157 | 68 | 46 | 34 | RP-17 | |
| G308S.039.048X103X245 | B | 195 | 245 | 103 | 76 | 48 | RP-18 | |
| G308S.040.072X143X245 | B | 182 | 245 | 143 | 113 | 72 | RP-19 |
