Quick Release Pin Flanged Receptacle - Round - Metric (MROFR)
MROFR-05

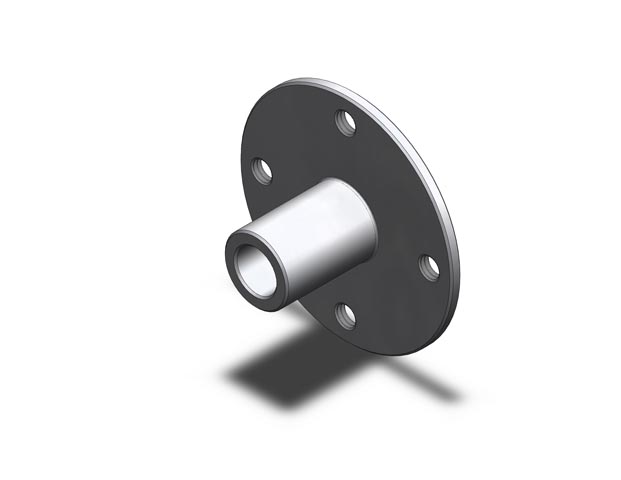

Ball Lock Pin Receptacle - Round - 5 mm

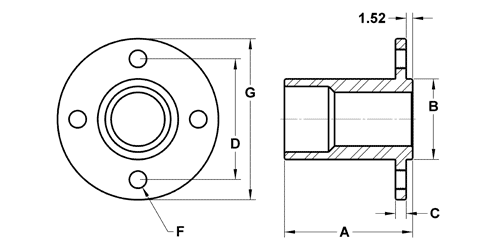

| Part # | Use With Pin Diameter mm | Flange Style mm | A mm | B mm | C mm | D mm | F Thread | G mm | Grip Length Reduction mm |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MROFR-05 | 5mm | Round | 16.51 | 9.53 | 1.52 | 25 | M4 | 31.75 | 10 | |
| MROFR-06 | 6mm | Round | 16.51 | 9.53 | 1.52 | 25 | M4 | 31.75 | 10 | |
| MROFR-08 | 8mm | Round | 19.89 | 11.91 | 1.52 | 25 | M4 | 31.75 | 13 | |
| MROFR-10 | 10mm | Round | 23.19 | 14.29 | 1.52 | 25 | M4 | 31.75 | 15 | |
| MROFR-12 | 12mm | Round | 30.35 | 19.05 | 2.54 | 29 | M5 | 38.10 | 20 |
