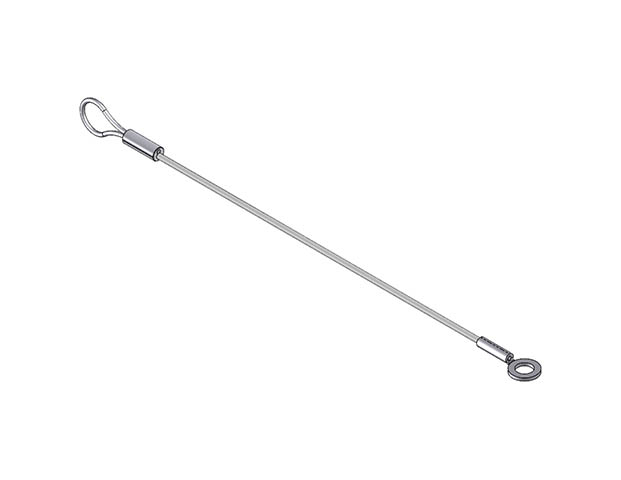

Quick Release Pin Wire Rope Lanyard - 3/64" Dia. - Loop-to-Eye Tab
LCL-3-06-E20
Wire Rope Lanyard w/ Clear Cover - 3/64 in Dia X 6 in - Eye Tab - .20 in.

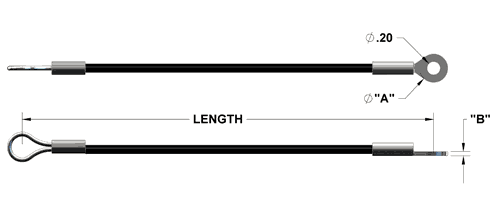

| Part # | Wire Diameter in | Length in | Tab Style | A in | B in | Color |
|
|---|---|---|---|---|---|---|---|
| LBK-3-06-E20 | 3/64 | 6 | Eyelet | 0.33 | 0.04 | Black | |
| LBK-3-08-E20 | 3/64 | 8 | Eyelet | 0.33 | 0.04 | Black | |
| LBK-3-10-E20 | 3/64 | 10 | Eyelet | 0.33 | 0.04 | Black | |
| LBK-3-12-E20 | 3/64 | 12 | Eyelet | 0.33 | 0.04 | Black | |
| LCL-3-06-E20 | 3/64 | 6 | Eyelet | 0.33 | 0.04 | Clear | |
| LCL-3-08-E20 | 3/64 | 8 | Eyelet | 0.33 | 0.04 | Clear | |
| LCL-3-10-E20 | 3/64 | 10 | Eyelet | 0.33 | 0.04 | Clear | |
| LCL-3-12-E20 | 3/64 | 12 | Eyelet | 0.33 | 0.04 | Clear | |
| LGR-3-06-E20 | 3/64 | 6 | Eyelet | 0.33 | 0.04 | Green | |
| LGR-3-08-E20 | 3/64 | 8 | Eyelet | 0.33 | 0.04 | Green | |
| LGR-3-10-E20 | 3/64 | 10 | Eyelet | 0.33 | 0.04 | Green | |
| LGR-3-12-E20 | 3/64 | 12 | Eyelet | 0.33 | 0.04 | Green | |
| LNC-3-06-E20 | 3/64 | 6 | Eyelet | 0.33 | 0.04 | No Cover | |
| LNC-3-08-E20 | 3/64 | 8 | Eyelet | 0.33 | 0.04 | No Cover | |
| LNC-3-10-E20 | 3/64 | 10 | Eyelet | 0.33 | 0.04 | No Cover | |
| LNC-3-12-E20 | 3/64 | 12 | Eyelet | 0.33 | 0.04 | No Cover |
