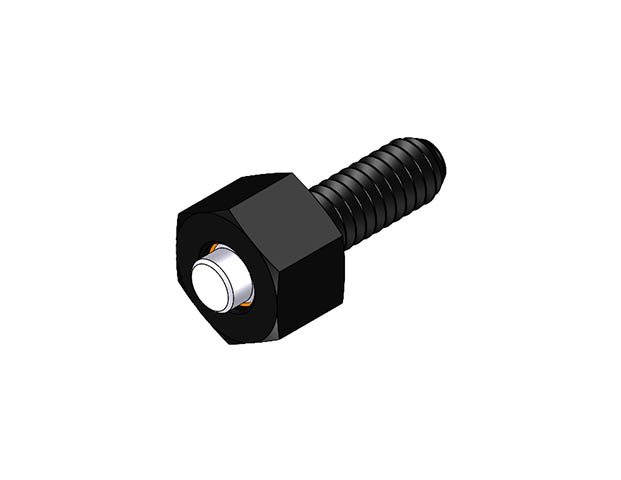

Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BUH-F)
BUH-0124-F
Hex Design Swivot - 10-24 X 1/2 in - Flat

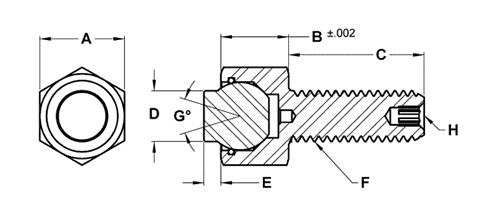

| Part # | A Hex Size in | B Head Size in | C Thread Length in | D Contact Dia in | E Standoff in | F Thread | G Swivel Degrees | H Int Hex in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0124-F | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-F | 1,176 | |
| BUH-0124X1-F | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-F | 1,176 | |
| BUH-0132-F | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-F | 1,176 | |
| BUH-0132X1-F | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-F | 1,176 | |
| BUH-0230-F | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0230-F-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0231-F | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0231-F-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0231X1.5-F | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0231X1.5-F-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0240-F | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-F | 7,178 | |
| BUH-0240-F-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-F-T | 7,178 | |
| BUH-0250-F | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0250-F-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0251-F | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0251-F-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0251X1.5-F | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0251X1.5-F-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0280-F | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0280-F-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0281-F | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0281-F-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0281X1.5-F | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-F | 2,441 | |
| BUH-0281X1.5-F-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-F-T | 2,441 | |
| BUH-0310-F | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0310-F-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0312-F | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0312-F-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0312X1.5-F | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0312X1.5-F-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0320-F | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0320-F-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0321-F | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0321-F-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0321X1.5-F | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-F | 2,792 | |
| BUH-0321X1.5-F-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-F-T | 2,792 | |
| BUH-0370-F | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0370-F-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0375-F | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0375-F-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0375X1.5-F | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F | 3,446 | |
| BUH-0375X1.5-F-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-F-T | 3,446 | |
| BUH-0500-F | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-F | 7,178 | |
| BUH-0500-F-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-F-T | 7,178 | |
| BUH-0510-F | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-F | 5,937 | |
| BUH-0510-F-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-F-T | 5,937 | |
| BUH-0515-F | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-F | 5,937 | |
| BUH-0515-F-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-F-T | 5,937 | |
| BUH-0620-F | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-F | 11,874 | |
| BUH-0620-F-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-F-T | 11,874 | |
| BUH-0620X2-F | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-F | 11,874 | |
| BUH-0620X2-F-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-F-T | 11,874 | |
| BUH-0625-F | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-F | 9,932 | |
| BUH-0625-F-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-F-T | 9,932 | |
| BUH-0625X2-F | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-F | 9,932 | |
| BUH-0625X2-F-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-F-T | 9,932 |
