Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBUH)
MBUH-10015

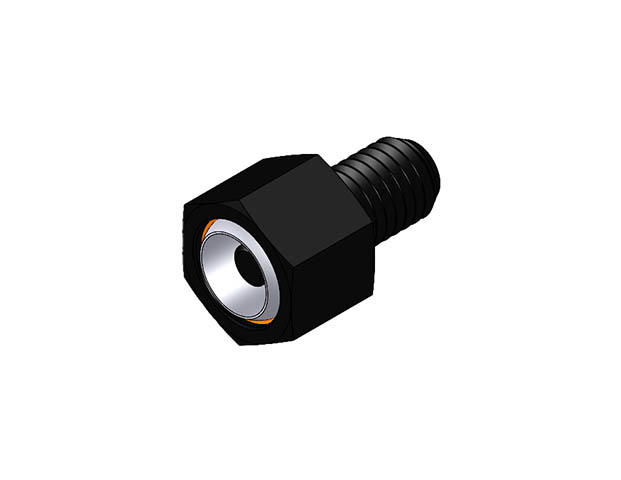

Hex Design Swivot - M10 X 15 mm - Replaceable Pad

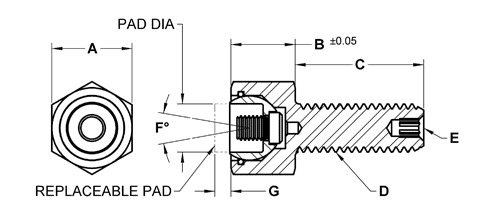

| Part # | A Hex mm | B Head Height mm | C Thread Length mm | D Thread | E Int Hex mm | F Swivel Degrees | G Standoff 1* mm | G Standoff 2* mm | Ball Dia mm | Replaceable Pad Dia mm | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-10015 | 17 | 13 | 15 | M10x1.5 | 3 | 20 | 4 | 6 | 13 | 10 | 4,194 | |
| MBUH-10030 | 17 | 13 | 30 | M10x1.5 | 3 | 20 | 4 | 6 | 13 | 10 | 4,194 | |
| MBUH-10050 | 17 | 13 | 50 | M10x1.5 | 3 | 20 | 4 | 6 | 13 | 10 | 4,194 | |
| MBUH-12020 | 19 | 15 | 20 | M12x1.75 | 5 | 20 | 4 | 6 | 15 | 12 | 6,627 | |
| MBUH-12040 | 19 | 15 | 40 | M12x1.75 | 5 | 20 | 4 | 6 | 15 | 12 | 6,627 | |
| MBUH-12060 | 19 | 15 | 60 | M12x1.75 | 5 | 20 | 4 | 6 | 15 | 12 | 6,627 | |
| MBUH-16025 | 24 | 19 | 25 | M16x2 | 6 | 20 | 4 | 6 | 20 | 16 | 11,193 | |
| MBUH-16050 | 24 | 19 | 50 | M16x2 | 6 | 20 | 4 | 6 | 20 | 16 | 11,193 | |
| MBUH-20030 | 30 | 20 | 30 | M20x2.5 | 8 | 20 | 4 | 6 | 23 | 20 | 19,136 | |
| MBUH-20060 | 30 | 20 | 60 | M20x2.5 | 8 | 20 | 4 | 6 | 23 | 20 | 19,136 | |
| MBUH-20100 | 30 | 20 | 100 | M20x2.5 | 8 | 20 | 4 | 6 | 23 | 20 | 19,136 | |
| MBUH-24040 | 36 | 26 | 40 | M24x3.0 | 10 | 20 | 4 | 6 | 28 | 25 | 27,239 | |
| MBUH-24100 | 36 | 26 | 100 | M24x3.0 | 10 | 20 | 4 | 6 | 28 | 25 | 27,239 |
