Grippers - Round - Tool Steel - Diamond Serration - C'Bore - Metric (MHS-C)
MHS-120-C

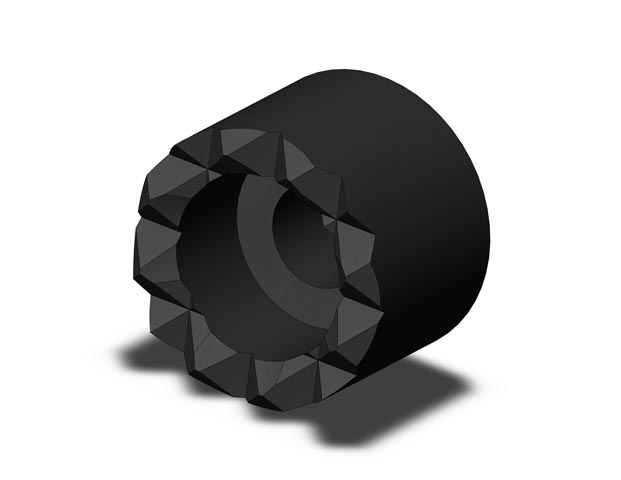

Tool Steel Gripper - Round w/ C'Bore - 12 mm Dia X 10 mm - Fine

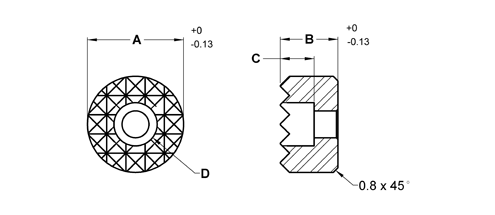

| Part # | A OD mm | B Height mm | C C'Bore mm | D C'Bore For | Tooth Pattern |
|
|---|---|---|---|---|---|---|
| MHS-120-C | 12 | 10 | 5.6 | M4 SHCS | Fine | |
| MHS-122-C | 12 | 12 | 5.6 | M4 SHCS | Fine | |
| MHS-160-C | 16 | 10 | 5.6 | M4 SHCS | Fine | |
| MHS-162-C | 16 | 12 | 5.6 | M4 SHCS | Fine | |
| MHS-200-C | 20 | 10 | 6.6 | M5 SHCS | Fine | |
| MHS-202-C | 20 | 12 | 6.6 | M5 SHCS | Fine | |
| MHS-250-C | 25 | 10 | 7.6 | M6 SHCS | Fine | |
| MHS-252-C | 25 | 12 | 7.6 | M6 SHCS | Fine |
