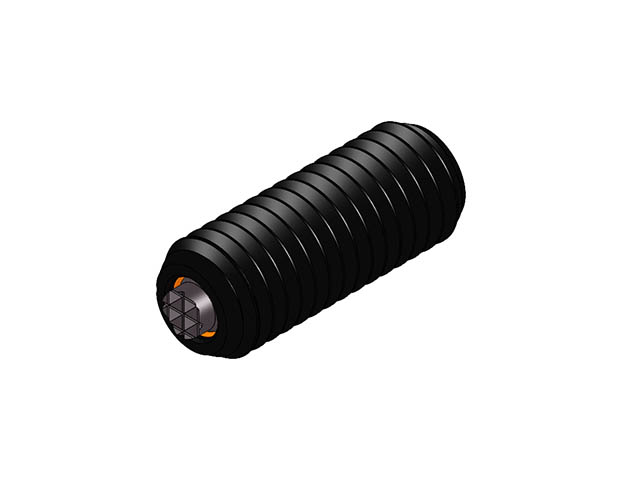

Full Threaded Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MTBU-S)
MTBU-10025-S
Threaded Design Swivot - M10 X 25 mm - Super Fine

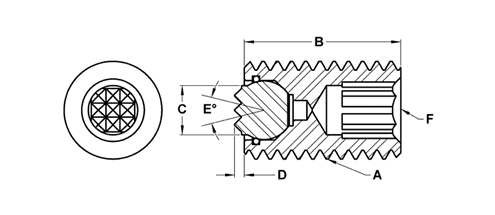

| Part # | A Thread | B Thread Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Ball Only Part No. | Tooth Pattern | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTBU-10025-S | M10x1.5 | 25 | 4 | 1.5 | 30 | 5 | 5 | MBUB-050-S | SF | — | |
| MTBU-10035-S | M10x1.5 | 35 | 4 | 1.5 | 30 | 5 | 5 | MBUB-050-S | SF | — | |
| MTBU-10050-S | M10x1.5 | 50 | 4 | 1.5 | 30 | 5 | 5 | MBUB-050-S | SF | — | |
| MTBU-12025-S | M12x1.75 | 25 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-S | SF | 3,440 | |
| MTBU-12025-S-T | M12x1.75 | 25 | 6 | 3 | 28 | 6 | 7 | MBUB-070-S-T | SF | 3,440 | |
| MTBU-12035-S | M12x1.75 | 35 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-S | SF | 3,440 | |
| MTBU-12035-S-T | M12x1.75 | 35 | 6 | 3 | 28 | 6 | 7 | MBUB-070-S-T | SF | 3,440 | |
| MTBU-12050-S | M12x1.75 | 50 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-S | SF | 3,440 | |
| MTBU-12050-S-T | M12x1.75 | 50 | 6 | 3 | 28 | 6 | 7 | MBUB-070-S-T | SF | 3,440 | |
| MTBU-16025-S | M16x2.0 | 25 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-S | EF | 5,190 | |
| MTBU-16025-S-T | M16x2.0 | 25 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-S-T | EF | 5,190 | |
| MTBU-16035-S | M16x2.0 | 35 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-S | EF | 5,190 | |
| MTBU-16035-S-T | M16x2.0 | 35 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-S-T | EF | 5,190 | |
| MTBU-16050-S | M16x2.0 | 50 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-S | EF | 5,190 | |
| MTBU-16050-S-T | M16x2.0 | 50 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-S-T | EF | 5,190 | |
| MTBU-20030-S | M20x2.5 | 30 | 10 | 4 | 42 | 10 | 13 | MBUB-130-S | EF | 8,379 | |
| MTBU-20030-S-T | M20x2.5 | 30 | 10 | 6 | 42 | 10 | 13 | MBUB-130-S-T | EF | 8,379 | |
| MTBU-20050-S | M20x2.5 | 50 | 10 | 4 | 42 | 10 | 13 | MBUB-130-S | EF | 8,379 | |
| MTBU-20050-S-T | M20x2.5 | 50 | 10 | 6 | 42 | 10 | 13 | MBUB-130-S-T | EF | 8,379 | |
| MTBU-20070-S | M20x2.5 | 70 | 10 | 4 | 42 | 10 | 13 | MBUB-130-S | EF | 8,379 | |
| MTBU-20070-S-T | M20x2.5 | 70 | 10 | 6 | 42 | 10 | 13 | MBUB-130-S-T | EF | 8,379 | |
| MTBU-24040-S | M24x3.0 | 40 | 12 | 4 | 45 | 10 | 15 | MBUB-150-S | Fine | 12,233 | |
| MTBU-24040-S-T | M24x3.0 | 40 | 12 | 6 | 45 | 10 | 15 | MBUB-150-S-T | Fine | 12,233 | |
| MTBU-24080-S | M24x3.0 | 80 | 12 | 4 | 45 | 10 | 15 | MBUB-150-S | Fine | 12,233 | |
| MTBU-24080-S-T | M24x3.0 | 80 | 12 | 6 | 45 | 10 | 15 | MBUB-150-S-T | Fine | 12,233 |
