Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MTBU)
MTBU-20030

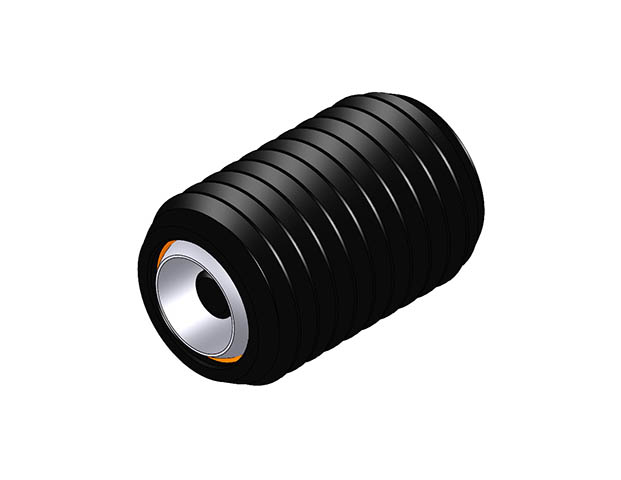

Threaded Design Swivot - M20 X 30 mm - Replaceable Pad

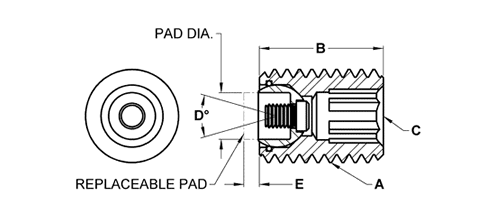

| Part # | A Thread mm | B Thread Length mm | C Int Hex mm | D Swivel Degrees | E Standoff 1* mm | E Standoff 2* mm | Ball Dia mm | Replaceable Pad Dia mm | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MTBU-20030 | M20x2.5 | 30 | 10 | 20 | 4 | 6 | 13 | 10 | 8,379 | |
| MTBU-20050 | M20x2.5 | 50 | 10 | 20 | 4 | 6 | 13 | 10 | 8,379 | |
| MTBU-20070 | M20x2.5 | 70 | 10 | 20 | 4 | 6 | 13 | 10 | 8,379 | |
| MTBU-24040 | M24x3.0 | 40 | 10 | 20 | 4 | 6 | 15 | 12 | 12,233 | |
| MTBU-24080 | M24x3.0 | 80 | 10 | 20 | 4 | 6 | 15 | 12 | 12,233 |
