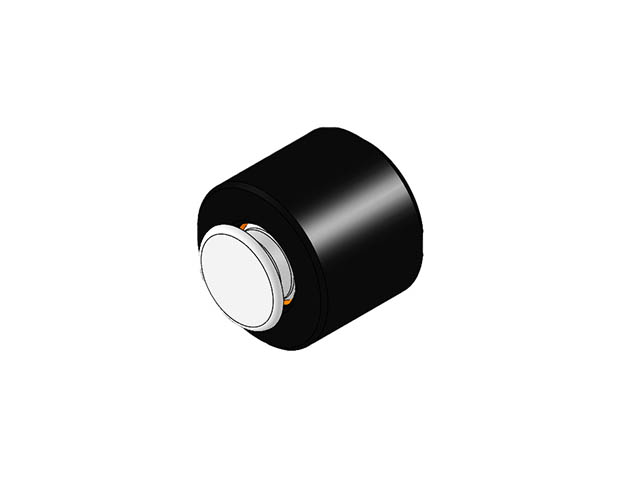

Base Design Swivots® Gripper Assembly - Flat Delrin Ball - Inch (BBU-D)
BBU-100-D
Base Design Swivot - 3/8 in Dia X 5/16 in - Delrin

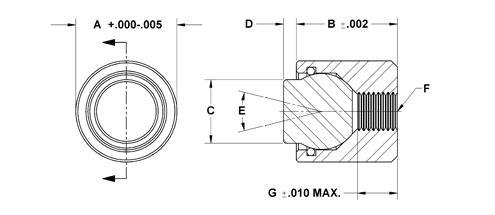

| Part # | A Dia in | B Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap in | G Thread Depth in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-D | 3/8 | 5/16 | 5/32 | 1/16 | 28 | #4-40 | 1/4 | 3/16 | BUB-187-D | |
| BBU-105-D | 3/8 | 7/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-D | |
| BBU-107-D | 3/8 | 11/16 | 5/32 | 1/16 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-D | |
| BBU-200-D | 7/16 | 3/8 | 1/4 | 1/16 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-D | |
| BBU-200-D-T | 7/16 | 3/8 | 1/4 | 1/8 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-D-T | |
| BBU-201-D | 7/16 | 15/16 | 1/4 | 1/16 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-D | |
| BBU-201-D-T | 7/16 | 15/16 | 1/4 | 1/8 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-D-T | |
| BBU-300-D | 1/2 | 1/2 | 5/16 | 1/16 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-D | |
| BBU-300-D-T | 1/2 | 1/2 | 5/16 | 1/8 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-D-T | |
| BBU-301-D | 1/2 | 1 | 5/16 | 1/16 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-D | |
| BBU-301-D-T | 1/2 | 1 | 5/16 | 1/8 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-D-T | |
| BBU-500-D | 5/8 | 3/4 | 3/8 | 1/8 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-D | |
| BBU-500-D-T | 5/8 | 3/4 | 3/8 | 1/4 | 40 | 1/4-28 | 1/4 | 1/2 | BUB-500-D-T | |
| BBU-600-D | 13/16 | 7/8 | 1/2 | 1/8 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-D | |
| BBU-600-D-T | 13/16 | 7/8 | 1/2 | 1/4 | 40 | 5/16-24 | 11/32 | 5/8 | BUB-600-D-T | |
| BBU-700-D | 15/16 | 7/8 | 5/8 | 1/8 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-D | |
| BBU-700-D-T | 15/16 | 7/8 | 5/8 | 1/4 | 34 | 3/8-24 | 9/32 | 3/4 | BUB-700-D-T |
