Base Design Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BBU)
BBU-500

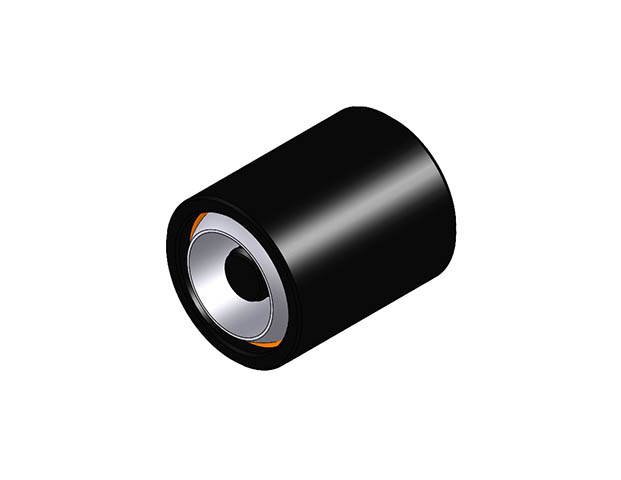

Base Design Swivot - 5/8 in Dia X 3/4 in - Replaceable Ball

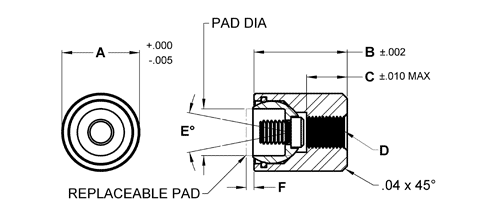

| Part # | A Dia in | B Length in | C Thread Length in | D Tap | E Swivel Degrees | F Standoff 1* in | F Standoff 2* in | Ball Dia in | Replaceable Pad Dia in | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| BBU-1100 | 1-1/2 | 1-1/4 | 7/16 | 1/2-20 | 20 | 1/8 | 1/4 | 1-1/8 | 1 | 34,619 | |
| BBU-500 | 5/8 | 3/4 | 15/64 | 1/4-28 | 20 | 1/8 | 1/4 | 1/2 | 3/8 | 5,849 | |
| BBU-600 | 13/16 | 7/8 | 11/32 | 5/16-24 | 24 | 1/8 | 1/4 | 5/8 | 1/2 | 10,925 | |
| BBU-700 | 15/16 | 7/8 | 9/32 | 3/8-24 | 22 | 1/8 | 1/4 | 3/4 | 5/8 | 13,325 | |
| BBU-800 | 1-1/8 | 15/16 | 17/64 | 1/2-20 | 20 | 1/8 | 1/4 | 7/8 | 3/4 | 18,863 |
