Grippers - Angle Style - Tool Steel - Serrated - Tapped - Inch (HS)

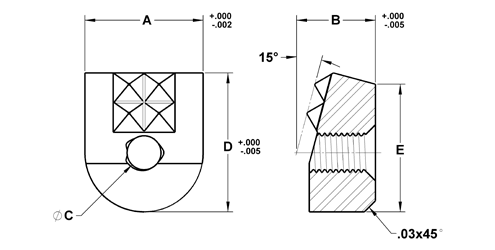

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated and smooth styles available. Grippers are angled at 15 degrees to fit Woodworth, Maxi-Grip, and Ultra-Grip rocker style chucks. Thru-hole tap.

Gripper Technical Information

HS-110

Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Smooth

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
HS-110	HS-110	HS-110	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Smooth	1	100387	CAD	9/16	3/8	#10-32	.65	.60	Smooth
HS-127-4	HS-127-4	HS-127-4	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - 4 Point	1	100426	CAD	9/16	3/8	#10-32	.65	.60	4Point
HS-127-12	HS-127-12	HS-127-12	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Fine	1	100404	CAD	9/16	3/8	#10-32	.65	.60	Fine
HS-130-4	HS-130-4	HS-130-4	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Straight	1	100452	CAD	9/16	3/8	#10-32	.65	.60	Straight
HS-145-5	HS-145-5	HS-145-5	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Angular	1	100462	CAD	9/16	3/8	#10-32	.65	.60	Angular
HS-150-3	HS-150-3	HS-150-3	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - 90 Degree Straight	1	100475	CAD	9/16	3/8	#10-32	.65	.60	3 Point/90°ST
MHS-110	MHS-110	MHS-110	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Smooth	1	100481	CAD	9/16	3/8	M5x0.8	.65	.60	Smooth
MHS-127-4	MHS-127-4	MHS-127-4	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - 4 Point	1	100517	CAD	9/16	3/8	M5x0.8	.65	.60	4 Point
MHS-127-12	MHS-127-12	MHS-127-12	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Fine	1	100515	CAD	9/16	3/8	M5x0.8	.65	.60	Fine
MHS-130-4	MHS-130-4	MHS-130-4	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Straight	1	100525	CAD	9/16	3/8	M5x0.8	.65	.60	Straight
MHS-145-5	MHS-145-5	MHS-145-5	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - Angular	1	100535	CAD	9/16	3/8	M5x0.8	.65	.60	Angular
MHS-150-3	MHS-150-3	MHS-150-3	Tool Steel Gripper - Angle Grip - 9/16 in X 3/8 in - 90 Degree Straight	1	100556	CAD	9/16	3/8	M5x0.8	.65	.60	3 Point/90°ST
HS-128-4	HS-128-4	HS-128-4	Tool Steel Gripper - Angle Grip - 3/4 in X 1/2 in - 4 Point	1	100433	CAD	3/4	1/2	1/4-28	.88	.81	4 Point
HS-128-22	HS-128-22	HS-128-22	Tool Steel Gripper - Angle Grip - 3/4 in X 1/2 in - Fine	1	100431	CAD	3/4	1/2	1/4-28	.88	.81	Fine
HS-158-3	HS-158-3	HS-158-3	Tool Steel Gripper - Angle Grip - 3/4 in X 1/2 in - 90 Degree Straight	1	100479	CAD	3/4	1/2	1/4-28	.88	.81	3 Point/90°ST
HS-110-10MM	HS-110-10MM	HS-110-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Smooth	1	100390	CAD	10	3/8	#10-32	.65	.60	Smooth
HS-127-4-10MM	HS-127-4-10MM	HS-127-4-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - 4 Point	1	100429	CAD	10	3/8	#10-32	.65	.60	4 Point
HS-130-4-10MM	HS-130-4-10MM	HS-130-4-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Straight	1	100455	CAD	10	3/8	#10-32	.65	.60	Straight
HS-145-5-10MM	HS-145-5-10MM	HS-145-5-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Angular	1	100469	CAD	10	3/8	#10-32	.65	.60	Angular
HS-150-3-10MM	HS-150-10MM	HS-150-3-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - 90 Degree Straight	1	100477	CAD	10	3/8	#10-32	.65	.60	3 Point/90°ST
MHS-110-10MM	MHS-110-10MM	MHS-110-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Smooth	1	100498	CAD	10	3/8	M5x0.8	.65	.60	Smooth
MHS-127-4-10MM	MHS-127-4-10MM	MHS-127-4-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - 4 Point	1	100519	CAD	10	3/8	M5x0.8	.65	.60	4 Point
MHS-130-4-10MM	MHS-130-4-10MM	MHS-130-4-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Straight	1	100533	CAD	10	3/8	M5x0.8	.65	.60	Straight
MHS-145-5-10MM	MHS-145-5-10MM	MHS-145-5-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - Angular	1	100545	CAD	10	3/8	M5x0.8	.65	.60	Angular
MHS-150-3-10MM	MHS-150-3-10MM	MHS-150-3-10MM	Tool Steel Gripper - Angle Grip - 10 mm X 3/8 in - 90 Degree Straight	1	100564	CAD	10	3/8	M5x0.8	.65	.60	3 Point/90°ST
