| MDRP-100-C |
MDRP-100-C |
MDRP-100-C |
Delrin Rest Pad - C'Bore - 10 mm Dia X 10 mm |
1 |
101393 |
CAD |
|
10 | 10 | 5.0 | M3 SHCS |
| MDRP-102-C |
MDRP-100-C |
MDRP-102-C |
Delrin Rest Pad - C'Bore - 10 mm Dia X 12 mm |
1 |
101407 |
CAD |
|
10 | 12 | 5.0 | M3 SHCS |
| MDRP-120-C |
MDRP-100-C |
MDRP-120-C |
Delrin Rest Pad - C'Bore - 12 mm Dia X 10 mm |
1 |
101418 |
CAD |
|
12 | 10 | 5.6 | M4 SHCS |
| MDRP-122-C |
MDRP-100-C |
MDRP-122-C |
Delrin Rest Pad - C'Bore - 12 mm Dia X 12 mm |
1 |
101434 |
CAD |
|
12 | 12 | 5.6 | M4 SHCS |
| MDRP-160-C |
MDRP-100-C |
MDRP-160-C |
Delrin Rest Pad - C'Bore - 16 mm Dia X 10 mm |
1 |
101443 |
CAD |
|
16 | 10 | 6.6 | M5 SHCS |
| MDRP-162-C |
MDRP-100-C |
MDRP-162-C |
Delrin Rest Pad - C'Bore - 16 mm Dia X 12 mm |
1 |
101460 |
CAD |
|
16 | 12 | 6.6 | M5 SHCS |
| MDRP-200-C |
MDRP-100-C |
MDRP-200-C |
Delrin Rest Pad - C'Bore - 20 mm Dia X 10 mm |
1 |
101465 |
CAD |
|
20 | 10 | 7.6 | M6 SHCS |
| MDRP-202-C |
MDRP-100-C |
MDRP-202-C |
Delrin Rest Pad - C'Bore - 20 mm Dia X 12 mm |
1 |
101481 |
CAD |
|
20 | 12 | 7.6 | M6 SHCS |
| MDRP-250-C |
MDRP-100-C |
MDRP-250-C |
Delrin Rest Pad - C'Bore - 25 mm Dia X 10 mm |
1 |
101503 |
CAD |
|
25 | 10 | 7.6 | M6 SHCS |
| MDRP-252-C |
MDRP-100-C |
MDRP-252-C |
Delrin Rest Pad - C'Bore - 25 mm Dia X 12 mm |
1 |
101514 |
CAD |
|
25 | 12 | 7.6 | M6 SHCS |
Results by Category
Results by Keyword
Results by Part Number

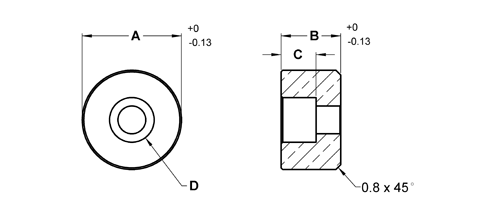

Drawing
