Grippers - Square - Tool Steel - Straight Serration - C'Bore - Inch (HS-SS)

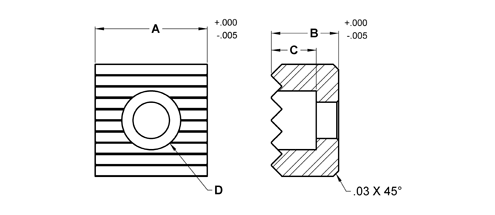

Drawing
Description
Media

Grippers - Square - Tool Steel - Straight Serration - C'Bore - Inch (HS-SS)

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Counter bored hole for front mounting with a socket head cap screw.

Gripper Technical Information

HS-92-C-SS

Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine Straight

Part Details
CAD

Show More...

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4
HS-92-C-SS	HS-92-C-SS	HS-92-C-SS	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Fine Straight	1	100578	CAD		1/2	3/8	1/4	#10 SHCS	Fine
HS-92-C-SS-EF	HS-92-C-SS	HS-92-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Extra Fine Straight	1	100589	CAD		1/2	3/8	1/4	#10 SHCS	EF
HS-92-C-SS-SF	HS-92-C-SS	HS-92-C-SS-SF	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 3/8 in - Super Fine Straight	1	100593	CAD		1/2	3/8	1/4	#10 SHCS	SF
HS-95-C-SS	HS-92-C-SS	HS-95-C-SS	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Fine Straight	1	100661	CAD		1/2	1/2	1/4	#10 SHCS	Fine
HS-95-C-SS-EF	HS-92-C-SS	HS-95-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Extra Fine Straight	1	100663	CAD		1/2	1/2	1/4	#10 SHCS	EF
HS-95-C-SS-SF	HS-92-C-SS	HS-95-C-SS-SF	Tool Steel Gripper - Square w/ C'Bore - 1/2 in X 1/2 in - Super Fine Straight	1	100664	CAD		1/2	1/2	1/4	#10 SHCS	SF
HS-962-C-SS	HS-92-C-SS	HS-962-C-SS	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Fine Straight	1	100817	CAD		5/8	3/8	1/4	#10 SHCS	Fine
HS-962-C-SS-EF	HS-92-C-SS	HS-962-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Extra Fine Straight	1	100820	CAD		5/8	3/8	1/4	#10 SHCS	EF
HS-9625-C-SS	HS-92-C-SS	HS-9625-C-SS	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Fine Straight	1	100860	CAD		5/8	1/2	1/4	#10 SHCS	Fine
HS-9625-C-SS-EF	HS-92-C-SS	HS-9625-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Extra Fine Straight	1	100867	CAD		5/8	1/2	1/4	#10 SHCS	EF
HS-963-C-SS	HS-92-C-SS	HS-963-C-SS	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 3/8 in - Coarse Straight	1	100916	CAD		5/8	3/8	1/4	#10 SHCS	Coarse
HS-9635-C-SS	HS-92-C-SS	HS-9635-C-SS	Tool Steel Gripper - Square w/ C'Bore - 5/8 in X 1/2 in - Coarse Straight	1	100945	CAD		5/8	1/2	1/4	#10 SHCS	Coarse
HS-97-C-SS	HS-92-C-SS	HS-97-C-SS	Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Fine Straight	1	100991	CAD		3/4	1/2	5/16	1/4 SHCS	Fine
HS-97-C-SS-EF	HS-92-C-SS	HS-97-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Extra Fine Straight	1	101006	CAD		3/4	1/2	5/16	1/4 SHCS	EF
HS-98-C-SS	HS-92-C-SS	HS-98-C-SS	Tool Steel Gripper - Square w/ C'Bore - 3/4 in X 1/2 in - Coarse Straight	1	101082	CAD		3/4	1/2	5/16	1/4 SHCS	Coarse
HS-101-C-SS	HS-92-C-SS	HS-101-C-SS	Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Fine Straight	1	100343	CAD		1	1/2	5/16	1/4 SHCS	Fine
HS-101-C-SS-EF	HS-92-C-SS	HS-101-C-SS-EF	Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Extra Fine Straight	1	100374	CAD		1	1/2	5/16	1/4 SHCS	EF
HS-102-C-SS	HS-92-C-SS	HS-102-C-SS	Tool Steel Gripper - Square w/ C'Bore - 1 in X 1/2 in - Coarse Straight	1	100417	CAD		1	1/2	5/16	1/4 SHCS	Coarse
