Bumpers - Crane Stop - Round - Urethane - Male Thread (RB)

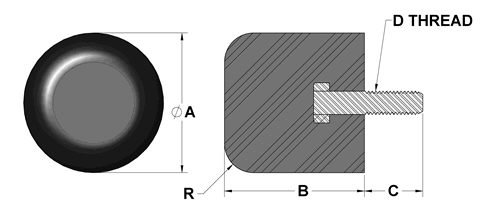

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel stud. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen.

Bumper Material Information

RB-1010-M14-40URBLK

Crane Stop Bumper - 40 Dur Urethane - 5/16-18 X 7/8 in - 1 in Dia

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
RB-1010-M14-40URBLK		RB-1010-M14-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 5/16-18 X 7/8 in - 1 in Dia	1	141787	CAD	1	1	7/8	5/16-18	1/4	40	Urethane
RB-1010-M14-60UR	RB-1010-M14-60UR	RB-1010-M14-60UR	Crane Stop Bumper - 60 Dur Urethane - 5/16-18 X 7/8 in	1	111190	CAD	1	1	7/8	5/16-18	1/4	60	Urethane
RB-1010-M14-80UR	RB-1010-M14-60UR	RB-1010-M14-80UR	Crane Stop Bumper - 80 Dur Urethane - 5/16-18 X 7/8 in	1	111198	CAD	1	1	7/8	5/16-18	1/4	80	Urethane
RB-1010-M14-80URBLK		RB-1010-M14-80URBLK	Crane Stop Bumper - 80 Dur Urethane - 5/16-18 X 7/8 in - 1 in Dia	1	141788	CAD	1	1	7/8	5/16-18	1/4	80	Urethane
RB-1515-M14-40URBLK		RB-1515-M14-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 5/16-18 X 7/8 in	1	141789	CAD	1-1/2	1-1/2	7/8	5/16-18	5/16	40	Urethane
RB-1515-M14-60UR	RB-1010-M14-60UR	RB-1515-M14-60UR	Crane Stop Bumper - 60 Dur Urethane - 5/16-18 X 7/8 in	1	111235	CAD	1-1/2	1-1/2	7/8	5/16-18	5/16	60	Urethane
RB-1515-M14-80UR	RB-1010-M14-60UR	RB-1515-M14-80UR	Crane Stop Bumper - 80 Dur Urethane - 5/16-18 X 7/8 in	1	111241	CAD	1-1/2	1-1/2	7/8	5/16-18	5/16	80	Urethane
RB-2020-M14-40URBLK		RB-2020-M14-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 5/16-18 X 7/8 in	1	141791	CAD	2	2	7/8	5/16-18	3/8	40	Urethane
RB-2020-M14-60UR	RB-1010-M14-60UR	RB-2020-M14-60UR	Crane Stop Bumper - 60 Dur Urethane - 5/16-18 X 7/8 in	1	111278	CAD	2	2	7/8	5/16-18	3/8	60	Urethane
RB-2020-M14-80UR	RB-1010-M14-60UR	RB-2020-M14-80UR	Crane Stop Bumper - 80 Dur Urethane - 5/16-18 X 7/8 in	1	111283	CAD	2	2	7/8	5/16-18	3/8	80	Urethane
RB-2020-M14-80URBLK		RB-2020-M14-80URBLK	Crane Stop Bumper - 80 Dur Urethane - 5/16-18 X 7/8 in	1	141792	CAD	2	2	7/8	5/16-18	3/8	80	Urethane
RB-2525-M14-40URBLK		RB-2525-M14-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 3/8-16 X 7/8 in	1	141793	CAD	2-1/2	2-1/2	7/8	3/8-16	1/2	40	Urethane
RB-2525-M14-60UR	RB-1010-M14-60UR	RB-2525-M14-60UR	Crane Stop Bumper - 60 Dur Urethane - 3/8-16 X 7/8 in	1	111288	CAD	2-1/2	2-1/2	7/8	3/8-16	1/2	60	Urethane
RB-2525-M14-80UR	RB-1010-M14-60UR	RB-2525-M14-80UR	Crane Stop Bumper - 80 Dur Urethane - 3/8-16 X 7/8 in	1	111290	CAD	2-1/2	2-1/2	7/8	3/8-16	1/2	80	Urethane
RB-2525-M14-80URBLK		RB-2525-M14-80URBLK	Crane Stop Bumper - 80 Dur Urethane - 3/8-16 X 7/8 in	1	141794	CAD	2-1/2	2-1/2	7/8	3/8-16	1/2	80	Urethane
RB-3030-M20-40URBLK		RB-3030-M20-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 1/2-13 X 1-1/4 in - 3 in Dia	1	141795	CAD	3	3	1-1/4	1/2-13	5/8	40	Urethane
RB-3030-M20-60UR	RB-1010-M14-60UR	RB-3030-M20-60UR	Crane Stop Bumper - 60 Dur Urethane - 1/2-13 X 1-1/4 in	1	111294	CAD	3	3	1-1/4	1/2-13	5/8	60	Urethane
RB-3030-M20-80UR	RB-1010-M14-60UR	RB-3030-M20-80UR	Crane Stop Bumper - 80 Dur Urethane - 1/2-13 X 1-1/4 in	1	111301	CAD	3	3	1-1/4	1/2-13	5/8	80	Urethane
RB-3030-M20-80URBLK		RB-3030-M20-80URBLK	Crane Stop Bumper - 80 Dur Urethane - 1/2-13 X 1-1/4 in - 3 in Dia	1	141796	CAD	3	3	1-1/4	1/2-13	5/8	80	Urethane
RB-4040-M21-40URBLK		RB-4040-M21-40URBLK	Crane Stop Bumper - 40 Dur Urethane - 1/2-13 X 1-1/4 in - 4 in Dia	1	141797	CAD	4	4	1-5/16	1/2-13	3/4	40	Urethane
RB-4040-M21-60UR	RB-1010-M14-60UR	RB-4040-M21-60UR	Crane Stop Bumper - 60 Dur Urethane - 1/2-13 X 1-5/16 in	1	111370	CAD	4	4	1-5/16	1/2-13	3/4	60	Urethane
RB-4040-M21-80UR	RB-1010-M14-60UR	RB-4040-M21-80UR	Crane Stop Bumper - 80 Dur Urethane - 1/2-13 X 1-5/16 in	1	109926	CAD	4	4	1-5/16	1/2-13	3/4	80	Urethane
RB-4040-M21-80URBLK		RB-4040-M21-80URBLK	Crane Stop Bumper - 80 Dur Urethane - 1/2-13 X 1-1/4 in - 4 in Dia	1	141798	CAD	4	4	1-5/16	1/2-13	3/4	80	Urethane
