Bumpers - Round - Hex Shoulder - Steel Core - Male Thread - Inch (RB)

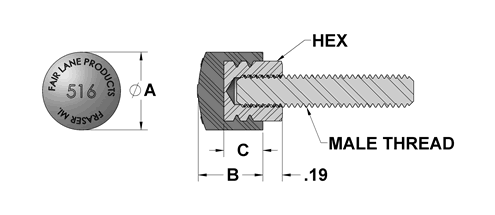

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen. Nitrile is chemical resistant and non-marring.

Bumper Material Information

RB-516-024-40M-20

Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - #10-24 X 1-1/4 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7
RB-516-024-40M-20		RB-516-024-40M-20	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - #10-24 X 1-1/4 in	1	109939	CAD	3/4	5/8	3/8	3/8	40	#10-24	1-1/4	Neoprene
RB-516-128-40M-8		RB-516-128-40M-8	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - 1/4-28 X 1/2 in	1	110176	CAD	3/4	5/8	3/8	7/16	40	1/4-28	1/2	Neoprene
RB-516-518-40M-8		RB-516-518-40M-8	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - 5/16-18 X 1/2 in	1	110253	CAD	3/4	5/8	3/8	1/2	40	5/16-18	1/2	Neoprene
RB-516-518-40M-20		RB-516-518-40M-20	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - 5/16-18 X 1-1/4 in	1	110248	CAD	3/4	5/8	3/8	1/2	40	5/16-18	1-1/4	Neoprene
RB-516-524-40M-8		RB-516-524-40M-8	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - 5/16-24 X 1/2 in	1	110276	CAD	3/4	5/8	3/8	1/2	40	5/16-24	1/2	Neoprene
RB-516-524-40M-20		RB-516-524-40M-20	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - 5/16-24 X 1-1/4 in	1	110269	CAD	3/4	5/8	3/8	1/2	40	5/16-24	1-1/4	Neoprene
RB-516-024M-8	RB-516-024M-8	RB-516-024M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 10-24 X 1/2 in	1	109989	CAD	3/4	5/8	3/8	3/8	70	#10-24	1/2	Neoprene
RB-516-024M-20	RB-516-024M-8	RB-516-024M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 10-24 X 1-1/4 in	1	109985	CAD	3/4	5/8	3/8	3/8	70	#10-24	1-1/4	Neoprene
RB-516-032M-8	RB-516-024M-8	RB-516-032M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 10-32 X 1/2 in	1	110051	CAD	3/4	5/8	3/8	3/8	70	#10-32	1/2	Neoprene
RB-516-032M-20	RB-516-024M-8	RB-516-032M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 10-32 X 1-1/4 in	1	110041	CAD	3/4	5/8	3/8	3/8	70	#10-32	1-1/4	Neoprene
RB-516-120M-8	RB-516-024M-8	RB-516-120M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 1/4-20 X 1/2 in	1	110126	CAD	3/4	5/8	3/8	7/16	70	1/4-20	1/2	Neoprene
RB-516-120M-20	RB-516-024M-8	RB-516-120M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 1/4-20 X 1-1/4 in	1	110114	CAD	3/4	5/8	3/8	7/16	70	1/4-20	1-1/4	Neoprene
RB-516-128M-8	RB-516-024M-8	RB-516-128M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 1/4-28 X 1/2 in	1	110200	CAD	3/4	5/8	3/8	7/16	70	1/4-28	1/2	Neoprene
RB-516-128M-20	RB-516-024M-8	RB-516-128M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 1/4-28 X 1-1/4 in	1	110184	CAD	3/4	5/8	3/8	7/16	70	1/4-28	1-1/4	Neoprene
RB-516-M-8	RB-516-024M-8	RB-516-M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 5/16-18 X 1/2 in	1	110371	CAD	3/4	5/8	3/8	1/2	70	5/16-18	1/2	Neoprene
RB-516-M-20	RB-516-024M-8	RB-516-M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 5/16-18 X 1-1/4 in	1	110350	CAD	3/4	5/8	3/8	1/2	70	5/16-18	1-1/4	Neoprene
RB-516-524M-8	RB-516-024M-8	RB-516-524M-8	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 5/16-24 X 1/2 in	1	110310	CAD	3/4	5/8	3/8	1/2	70	5/16-24	1/2	Neoprene
RB-516-524M-20	RB-516-024M-8	RB-516-524M-20	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - 5/16-24 X 1-1/4 in	1	110303	CAD	3/4	5/8	3/8	1/2	70	5/16-24	1-1/4	Neoprene
RB-516-024URM-8	RB-516-024M-8	RB-516-024URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-24 X 1/2 in	1	110012	CAD	3/4	5/8	3/8	1/2	80	#10-24	1/2	Urethane
RB-516-024URM-20	RB-516-024M-8	RB-516-024URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-24 X 1/1/4 in	1	110001	CAD	3/4	5/8	3/8	1/2	80	#10-24	1-1/4	Urethane
RB-516-032URM-8	RB-516-024M-8	RB-516-032URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-32 X 1/2 in	1	110079	CAD	3/4	5/8	3/8	1/2	80	#10-32	1/2	Urethane
RB-516-032URM-20	RB-516-024M-8	RB-516-032URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-32 X 1-1/4 in	1	110068	CAD	3/4	5/8	3/8	1/2	80	#10-32	1-1/4	Urethane
RB-516-120URM-8	RB-516-024M-8	RB-516-120URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-20 X 1/2 in	1	110162	CAD	3/4	5/8	3/8	1/2	80	1/4-20	1/2	Urethane
RB-516-120URM-20	RB-516-024M-8	RB-516-120URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-20 X 1-1/4 in	1	110137	CAD	3/4	5/8	3/8	1/2	80	1/4-20	1-1/4	Urethane
RB-516-128URM-8	RB-516-024M-8	RB-516-128URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-28 X 1/2 in	1	110237	CAD	3/4	5/8	3/8	1/2	80	1/4-28	1/2	Urethane
RB-516-128URM-20	RB-516-024M-8	RB-516-128URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-28 X 1-1/4 in	1	110224	CAD	3/4	5/8	3/8	1/2	80	1/4-28	1-1/4	Urethane
RB-516-URM-8	RB-516-024M-8	RB-516-URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-18 X 1/2 in	1	110413	CAD	3/4	5/8	3/8	1/2	80	5/16-18	1/2	Urethane
RB-516-URM-20	RB-516-024M-8	RB-516-URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-18 X 1-1/4 in	1	110400	CAD	3/4	5/8	3/8	1/2	80	5/16-18	1-1/4	Urethane
RB-516-524URM-8	RB-516-024M-8	RB-516-524URM-8	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-24 X 1/2 in	1	110339	CAD	3/4	5/8	3/8	1/2	80	5/16-24	1/2	Urethane
RB-516-524URM-20	RB-516-024M-8	RB-516-524URM-20	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-24 X 1-1/4 in	1	110318	CAD	3/4	5/8	3/8	1/2	80	5/16-24	1-1/4	Urethane
RB-516-WM-8	RB-516-024M-8	RB-516-WM-8	Round Bumper w/ Hex Shoulder - 70 Dur Nitrile - 5/16-18 X 1/2 in	1	110450	CAD	3/4	5/8	3/8	1/2	70	5/16-18	1/2	Nitrile
RB-516-WM-20	RB-516-024M-8	RB-516-WM-20	Round Bumper w/ Hex Shoulder - 70 Dur Nitrile - 5/16-18 X 1-1/4 in	1	110429	CAD	3/4	5/8	3/8	1/2	70	5/16-18	1-1/4	Nitrile
