Home > Workholding & Positioning > Grippers > Fixed/Non-Adjustable > HS - C`Bored > Round C`Bored (Inch)

Grippers - Round - Tool Steel - Diamond Serration - C'Bore - Inch (HS-C)

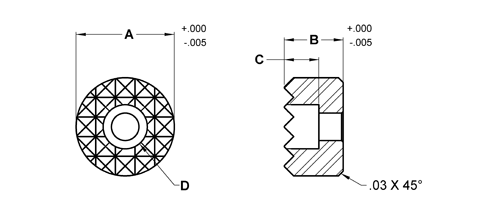

Drawing
Description
Media

Grippers - Round - Tool Steel - Diamond Serration - C'Bore - Inch (HS-C)

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Counter bored hole for front mounting with a socket head cap screw.

Gripper Technical Information

HS-50-C

Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 3/8 in - Fine

Part Details
CAD

Show More...

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4
HS-50-C	HS-50-C	HS-50-C	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 3/8 in - Fine	1	100749	CAD		1/2	3/8	7/32	#8 SHCS	Fine
HS-50-C-EF	HS-50-C	HS-50-C-EF	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 3/8 in - Extra Fine	1	100756	CAD		1/2	3/8	7/32	#8 SHCS	EF
HS-50-C-SF	HS-50-C	HS-50-C-SF	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 3/8 in - Super Fine	1	100760	CAD		1/2	3/8	7/32	#8 SHCS	SF
HS-53-C	HS-50-C	HS-53-C	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 1/2 in - Fine	1	100888	CAD		1/2	1/2	7/32	#8 SHCS	Fine
HS-53-C-EF	HS-50-C	HS-53-C-EF	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 1/2 in - Extra Fine	1	100889	CAD		1/2	1/2	7/32	#8 SHCS	EF
HS-53-C-SF	HS-50-C	HS-53-C-SF	Tool Steel Gripper - Round w/ C'Bore - 1/2 in Dia X 1/2 in - Super Fine	1	100898	CAD		1/2	1/2	7/32	#8 SHCS	SF
HS-62-C	HS-50-C	HS-62-C	Tool Steel Gripper - Round w/ C'Bore - 5/8 in Dia X 3/8 in - Fine	1	100951	CAD		5/8	3/8	7/32	#8 SHCS	Fine
HS-62-C-EF	HS-50-C	HS-62-C-EF	Tool Steel Gripper - Round w/ C'Bore - 5/8 in Dia X 3/8 in - Extra Fine	1	100958	CAD		5/8	3/8	7/32	#8 SHCS	EF
HS-625-C	HS-50-C	HS-625-C	Tool Steel Gripper - Round w/ C'Bore - 5/8 in Dia X 1/2 in - Fine	1	100976	CAD		5/8	1/2	7/32	#8 SHCS	Fine
HS-625-C-EF	HS-50-C	HS-625-C-EF	Tool Steel Gripper - Round w/ C'Bore - 5/8 in Dia X 1/2 in - Extra Fine	1	100980	CAD		5/8	1/2	7/32	#8 SHCS	EF
HS-75-C	HS-50-C	HS-75-C	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 3/8 in - Fine	1	101019	CAD		3/4	3/8	1/4	#10 SHCS	Fine
HS-75-C-EF	HS-50-C	HS-75-C-EF	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 3/8 in - Extra Fine	1	101029	CAD		3/4	3/8	1/4	#10 SHCS	EF
HS-755-C	HS-50-C	HS-755-C	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 1/2 in - Fine	1	101056	CAD		3/4	1/2	1/4	#10 SHCS	Fine
HS-755-C-EF	HS-50-C	HS-755-C-EF	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 1/2 in - Extra Fine	1	101061	CAD		3/4	1/2	1/4	#10 SHCS	EF
HS-76-C	HS-50-C	HS-76-C	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 3/8 in - Coarse	1	101079	CAD		3/4	3/8	1/4	#10 SHCS	Coarse
HS-765-C	HS-50-C	HS-765-C	Tool Steel Gripper - Round w/ C'Bore - 3/4 in Dia X 1/2 in - Coarse	1	101096	CAD		3/4	1/2	5/16	#10 SHCS	Coarse
HS-81-C	HS-50-C	HS-81-C	Tool Steel Gripper - Round w/ C'Bore - 1 in Dia X 1/2 in - Coarse	1	101121	CAD		1	1/2	5/16	1/4 SHCS	Coarse
HS-82-C	HS-50-C	HS-82-C	Tool Steel Gripper - Round w/ C'Bore - 1 in Dia X 1/2 in - Fine	1	101142	CAD		1	1/2	5/16	1/4 SHCS	Fine
HS-82-C-EF	HS-50-C	HS-82-C-EF	Tool Steel Gripper - Round w/ C'Bore - 1 in Dia X 1/2 in - Extra Fine	1	101148	CAD		1	1/2	5/16	1/4 SHCS	EF
