Grippers - Round - Tool Steel - Diamond Serration - C'Bore - Metric (MHS-C)

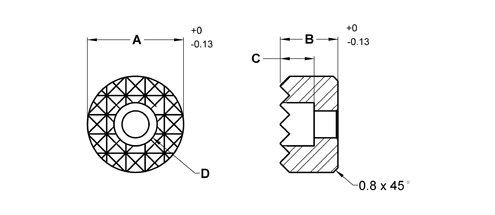

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Counter bored hole for front mounting with a socket head cap screw.

Select the following link for additional technical information.

Gripper Technical Information

MHS-120-C

Tool Steel Gripper - Round w/ C'Bore - 12 mm Dia X 10 mm - Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4
MHS-120-C	MHS-120-C	MHS-120-C	Tool Steel Gripper - Round w/ C'Bore - 12 mm Dia X 10 mm - Fine	1	100256	CAD	12	10	5.6	M4 SHCS	Fine
MHS-122-C	MHS-120-C	MHS-122-C	Tool Steel Gripper - Round w/ C'Bore - 12 mm Dia X 12 mm - Fine	1	100261	CAD	12	12	5.6	M4 SHCS	Fine
MHS-160-C	MHS-120-C	MHS-160-C	Tool Steel Gripper - Round w/ C'Bore - 16 mm Dia X 10 mm - Fine	1	100273	CAD	16	10	5.6	M4 SHCS	Fine
MHS-162-C	MHS-120-C	MHS-162-C	Tool Steel Gripper - Round w/ C'Bore - 16 mm Dia X 12 mm - Fine	1	100279	CAD	16	12	5.6	M4 SHCS	Fine
MHS-200-C	MHS-120-C	MHS-200-C	Tool Steel Gripper - Round w/ C'Bore - 20 mm Dia X 12 mm - Fine	1	100299	CAD	20	10	6.6	M5 SHCS	Fine
MHS-202-C	MHS-120-C	MHS-202-C	Tool Steel Gripper - Round w/ C'Bore - 20 mm Dia X 12 mm - Fine	1	100303	CAD	20	12	6.6	M5 SHCS	Fine
MHS-250-C	MHS-120-C	MHS-250-C	Tool Steel Gripper - Round w/ C'Bore - 25 mm Dia X 10 mm - Fine	1	100319	CAD	25	10	7.6	M6 SHCS	Fine
MHS-252-C	MHS-120-C	MHS-252-C	Tool Steel Gripper - Round w/ C'Bore - 25 mm Dia X 12 mm - Fine	1	100323	CAD	25	12	7.6	M6 SHCS	Fine
