Grippers - Round - Solid Carbide - Diamond Serration (FSC)

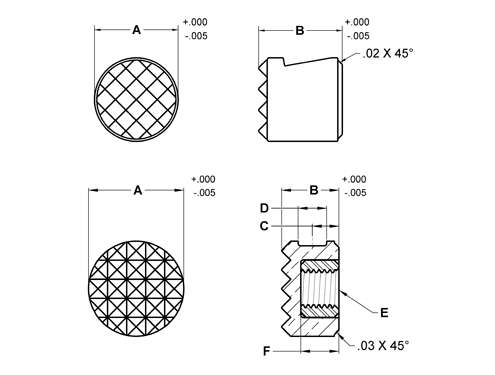

Drawing
Description
Media

Grippers - Round - Solid Carbide - Diamond Serration (FSC)

Description

Made from solid carbide for high wear and high load applications. Serrated for positive holding in tough applications. Blind-hole tap for back side mounting. Flat on O.D. for set screw mounting.

Gripper Technical Information

FSC-20-SF-SL

Solid Carbide Gripper - Round - 1/4 in Dia X 3/8 in - Super Fine

Part Details
CAD

Show More...

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4	5	6
FSC-20-SF-SL	FSC-30-SL	FSC-20-SF-SL	Solid Carbide Gripper - Round - 1/4 in Dia X 3/8 in - Super Fine	1	100781	CAD		1/4	3/8	—	—	—	—	SF
FSC-20-4-SL	FSC-30-SL	FSC-20-4-SL	Solid Carbide Gripper - Round - 1/4 in Dia X 3/8 in - 4 Point	1	100773	CAD		1/4	3/8	—	—	—	—	4 Point
FSC-30-SL	FSC-30-SL	FSC-30-SL	Solid Carbide Gripper - Round - 5/16 in Dia X 3/8 in - Extra Fine	1	100821	CAD		5/16	3/8	—	—	—	—	EF
FSC-30-4-SL	FSC-30-SL	FSC-30-4-SL	Solid Carbide Gripper - Round - 5/16 in Dia X 3/8 in - 4 Point	1	100789	CAD		5/16	3/8	—	—	—	—	4 Point
FSC-40-SL	FSC-30-SL	FSC-40-SL	Solid Carbide Gripper - Round - 3/8 in Dia X 3/8 in - Extra Fine	1	100829	CAD		3/8	3/8	—	—	—	—	EF
FSC-40-4-SL	FSC-30-SL	FSC-40-4-SL	Solid Carbide Gripper - Round - 3/8 in Dia X 3/8 in - 4 Point	1	100825	CAD		3/8	3/8	—	—	—	—	4 Point
FSC-841	FSC-30-SL	FSC-841	Solid Carbide Gripper - Round - 1/2 in Dia X 3/8 in - Fine	1	100834	CAD		1/2	3/8	11/64	3/16	#10-32	3/16	Fine
FSC-844-4	FSC-30-SL	FSC-844-4	Solid Carbide Gripper - Round - 1/2 in Dia X 1/2 in - 4 Point	1	100844	CAD		1/2	1/2	15/64	3/16	#10-32	5/16	4 Point
FSC-844	FSC-30-SL	FSC-844	Solid Carbide Gripper - Round - 1/2 in Dia X 1/2 in - Fine	1	100841	CAD		1/2	1/2	15/64	3/16	#10-32	5/16	Fine
FSC-844-SL	FSC-30-SL	FSC-844-SL	Solid Carbide Gripper - Round - 1/2 in Dia X 1/2 in - Flat	1	100853	CAD		1/2	1/2	15/64	3/16	—	—	Fine
FSC-070-4	FSC-30-SL	FSC-070-4	Solid Carbide Gripper - Round w/ Keyway - 1/2 in Dia X 1/2 in - 4 Point	1	100765	CAD		1/2	1/2	—	Keyway	#10-32	5/16	4 Point
FSC-070	FSC-30-SL	FSC-070	Solid Carbide Gripper - Round w/ Keyway - 1/2 in Dia X 1/2 in - Fine	1	100753	CAD		1/2	1/2	—	Keyway	#10-32	5/16	Fine
FSC-850	FSC-30-SL	FSC-850	Solid Carbide Gripper - Round - 5/8 in Dia X 3/8 in - Fine	1	100856	CAD		5/8	3/8	11/64	3/16	1/4-28	3/16	Fine
FSC-860	FSC-30-SL	FSC-860	Solid Carbide Gripper - Round - 3/4 in Dia X 3/8 in - Fine	1	100858	CAD		3/4	3/8	11/64	3/16	1/4-28	3/16	Fine
