Small - Steel Core

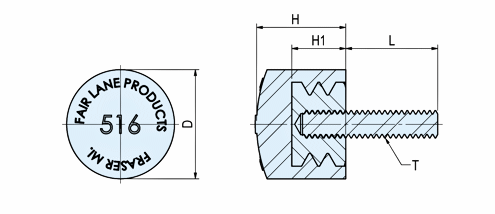

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen. Nitrile is chemical resistant and non-marring.

RB-516-024-40M-8NH

Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-24 X 5/8 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
RB-516-024-40M-8NH	RB-516-NH	RB-516-024-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-24 X 5/8 in	1	109961	CAD	#10-24	3/4	5/8	5/8	3/8	Neoprene	40
RB-516-024-40M-20NH	RB-516-NH	RB-516-024-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-24 X 1-3/8 in	1	109951	CAD	#10-24	3/4	1-3/8	5/8	3/8	Neoprene	40
RB-516-032-40M-8NH	RB-516-NH	RB-516-032-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-32 X 5/8 in	1	110040	CAD	#10-32	3/4	5/8	5/8	3/8	Neoprene	40
RB-516-032-40M-20NH	RB-516-NH	RB-516-032-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - #10-32 X 1-3/8 in	1	110031	CAD	#10-32	3/4	1-3/8	5/8	3/8	Neoprene	40
RB-516-120-40M-8NH	RB-516-NH	RB-516-120-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 1/4-20 X 11/16 in	1	110106	CAD	1/4-20	3/4	11/16	5/8	3/8	Neoprene	40
RB-516-120-40M-20NH	RB-516-NH	RB-516-120-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 1/4-20 X 1-7/16 in	1	110091	CAD	1/4-20	3/4	1-7/16	5/8	3/8	Neoprene	40
RB-516-128-40M-8NH	RB-516-NH	RB-516-128-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 1/4-28 X 11/16 in	1	110179	CAD	1/4-28	3/4	11/16	5/8	3/8	Neoprene	40
RB-516-128-40M-20NH	RB-516-NH	RB-516-128-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 1/4-28 X 1-7/16 in	1	110174	CAD	1/4-28	3/4	1-7/16	5/8	3/8	Neoprene	40
RB-516-518-40M-8NH	RB-516-NH	RB-516-518-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 5/16-18 X 11/16 in	1	110264	CAD	5/16-18	3/4	11/16	5/8	3/8	Neoprene	40
RB-516-518-40M-20NH	RB-516-NH	RB-516-518-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 5/16-18 X 1-7/16 in	1	110251	CAD	5/16-18	3/4	1-7/16	5/8	3/8	Neoprene	40
RB-516-524-40M-8NH	RB-516-NH	RB-516-524-40M-8NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 5/16-24 X 11/16 in	1	110297	CAD	5/16-24	3/4	11/16	5/8	3/8	Neoprene	40
RB-516-524-40M-20NH	RB-516-NH	RB-516-524-40M-20NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - 5/16-24 X 1-7/16 in	1	110274	CAD	5/16-24	3/4	1-7/16	5/8	3/8	Neoprene	40
RB-516-024M-8NH	RB-516-NH	RB-516-024M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - #10-24 X 5/8 in	1	109990	CAD	#10-24	3/4	5/8	5/8	3/8	Neoprene	70
RB-516-024M-20NH	RB-516-NH	RB-516-024M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - #10-24 X 1-3/8 in	1	109987	CAD	#10-24	3/4	1-3/8	5/8	3/8	Neoprene	70
RB-516-032M-8NH	RB-516-NH	RB-516-032M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - #10-32 X 5/8 in	1	110059	CAD	#10-32	3/4	5/8	5/8	3/8	Neoprene	70
RB-516-032M-20NH	RB-516-NH	RB-516-032M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - #10-32 X 1-3/8 in	1	110045	CAD	#10-32	3/4	1-3/8	5/8	3/8	Neoprene	70
RB-516-120M-8NH	RB-516-NH	RB-516-120M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 1/4-20 X 11/16 in	1	110131	CAD	1/4-20	3/4	11/16	5/8	3/8	Neoprene	70
RB-516-120M-20NH	RB-516-NH	RB-516-120M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 1/4-20 X 1-7/16 in	1	110119	CAD	1/4-20	3/4	1-7/16	5/8	3/8	Neoprene	70
RB-516-128M-8NH	RB-516-NH	RB-516-128M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 1/4-28 X 11/16 in	1	110219	CAD	1/4-28	3/4	11/16	5/8	3/8	Neoprene	70
RB-516-128M-20NH	RB-516-NH	RB-516-128M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 1/4-28 X 1-7/16 in	1	110198	CAD	1/4-28	3/4	1-7/16	5/8	3/8	Neoprene	70
RB-516-M-8NH	RB-516-NH	RB-516-M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 5/16-18 X 11/16 in	1	110386	CAD	5/16-18	3/4	11/16	5/8	3/8	Neoprene	70
RB-516-M-20NH	RB-516-NH	RB-516-M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 5/16-18 X 1-7/16 in	1	110356	CAD	5/16-18	3/4	1-7/16	5/8	3/8	Neoprene	70
RB-516-524M-8NH	RB-516-NH	RB-516-524M-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 5/16-24 X 11/16 in	1	110316	CAD	5/16-24	3/4	11/16	5/8	3/8	Neoprene	70
RB-516-524M-20NH	RB-516-NH	RB-516-524M-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - 5/16-24 X 1-7/16 in	1	110309	CAD	5/16-24	3/4	1-7/16	5/8	3/8	Neoprene	70
RB-516-024URM-8NH	RB-516-024-40M-8NH	RB-516-024URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - #10-24 X 5/8 in	1	110015	CAD	#10-24	3/4	5/8	5/8	3/8	Urethane	80
RB-516-024URM-20NH	RB-516-024-40M-8NH	RB-516-024URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - #10-24 X 1-3/8 in	1	110005	CAD	#10-24	3/4	1-3/8	5/8	3/8	Urethane	80
RB-516-032URM-8NH	RB-516-024-40M-8NH	RB-516-032URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - #10-32 X 5/8 in	1	110081	CAD	#10-32	3/4	5/8	5/8	3/8	Urethane	80
RB-516-032URM-20NH	RB-516-024-40M-8NH	RB-516-032URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - #10-32 X 1-3/8 in	1	110070	CAD	#10-32	3/4	1-3/8	5/8	3/8	Urethane	80
RB-516-120URM-8NH	RB-516-024-40M-8NH	RB-516-120URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 1/4-20 X 11/16 in	1	110169	CAD	1/4-20	3/4	11/16	5/8	3/8	Urethane	80
RB-516-120URM-20NH	RB-516-024-40M-8NH	RB-516-120URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 1/4-20 X 1-7/16 in	1	110158	CAD	1/4-20	3/4	1-7/16	5/8	3/8	Urethane	80
RB-516-128URM-8NH	RB-516-024-40M-8NH	RB-516-128URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 1/4-28 X 11/16 in	1	110244	CAD	1/4-28	3/4	11/16	5/8	3/8	Urethane	80
RB-516-128URM-20NH	RB-516-024-40M-8NH	RB-516-128URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 1/4-28 X 1-7/16 in	1	110229	CAD	1/4-28	3/4	1-7/16	5/8	3/8	Urethane	80
RB-516-URM-8NH	RB-516-024-40M-8NH	RB-516-URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 5/16-18 X 11/16 in	1	110418	CAD	5/16-18	3/4	11/16	5/8	3/8	Urethane	80
RB-516-URM-20NH	RB-516-024-40M-8NH	RB-516-URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 5/16-18 X 1-7/16 in	1	110410	CAD	5/16-18	3/4	1-7/16	5/8	3/8	Urethane	80
RB-516-524URM-8NH	RB-516-024-40M-8NH	RB-516-524URM-8NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 5/16-24 X 11/16 in	1	110344	CAD	5/16-24	3/4	11/16	5/8	3/8	Urethane	80
RB-516-524URM-20NH	RB-516-024-40M-8NH	RB-516-524URM-20NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 5/16-24 X 1-7/16 in	1	110337	CAD	5/16-24	3/4	1-7/16	5/8	3/8	Urethane	80
RB-516-WM-8NH	RB-516-NH	RB-516-WM-8NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Nitrile - 5/16-18 X 11/16 in	1	110453	CAD	5/16-18	3/4	11/16	5/8	3/8	Nitrile	70
RB-516-WM-20NH	RB-516-NH	RB-516-WM-20NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Nitrile - 5/16-18 X 1-7/16 in	1	110443	CAD	5/16-18	3/4	1-7/16	5/8	3/8	Nitrile	70
