Grippers - Square - Tool Steel - Straight Serration - Tapped - Inch (HS-SS)

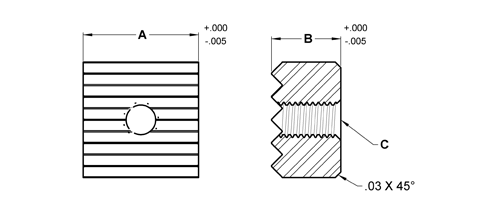

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Thru-hole tap.

Gripper Technical Information

HS-90-SS

Tool Steel Gripper - Square - 3/8 in X 3/8 in - Extra Fine Straight

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
HS-90-SS	HS-90-SS	HS-90-SS	Tool Steel Gripper - Square - 3/8 in X 3/8 in - Extra Fine Straight	1	100512	CAD	3/8	3/8	#10-32	EF
HS-90-SS-SF	HS-90-SS	HS-90-SS-SF	Tool Steel Gripper - Square - 3/8 in X 3/8 in - Super Fine Straight	1	100527	CAD	3/8	3/8	#10-32	SF
HS-905-SS	HS-90-SS	HS-905-SS	Tool Steel Gripper - Square - 3/8 in X 1/2 in - Extra Fine Straight	1	100537	CAD	3/8	1/2	#10-32	EF
HS-905-SS-SF	HS-90-SS	HS-905-SS-SF	Tool Steel Gripper - Square - 3/8 in X 1/2 in - Super Fine Straight	1	100544	CAD	3/8	1/2	#10-32	SF
HS-95-SS	HS-90-SS	HS-95-SS	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Fine Straight	1	100680	CAD	1/2	3/8	#10-32	Fine
HS-95-SS-EF	HS-90-SS	HS-95-SS-EF	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Extra Fine Straight	1	100688	CAD	1/2	3/8	#10-32	EF
HS-95-SS-SF	HS-90-SS	HS-95-SS-SF	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Super Fine Straight	1	100702	CAD	1/2	3/8	#10-32	SF
HS-955-SS	HS-90-SS	HS-955-SS	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Fine Straight	1	100734	CAD	1/2	1/2	#10-32	Fine
HS-955-SS-EF	HS-90-SS	HS-955-SS-EF	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Extra Fine Straight	1	100743	CAD	1/2	1/2	#10-32	EF
HS-955-SS-SF	HS-90-SS	HS-955-SS-SF	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Super Fine Straight	1	100754	CAD	1/2	1/2	#10-32	SF
HS-96-SS	HS-90-SS	HS-96-SS	Tool Steel Gripper - Square - 1/2 in X 3/8 in - Coarse Straight	1	100776	CAD	1/2	3/8	#10-32	Coarse
HS-965-SS	HS-90-SS	HS-965-SS	Tool Steel Gripper - Square - 1/2 in X 1/2 in - Coarse Straight	1	100960	CAD	1/2	1/2	#10-32	Coarse
HS-962-SS	HS-90-SS	HS-962-SS	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Fine Straight	1	100831	CAD	5/8	3/8	#10-32	Fine
HS-962-SS-EF	HS-90-SS	HS-962-SS-EF	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Extra Fine Straight	1	100839	CAD	5/8	3/8	#10-32	EF
HS-9625-SS	HS-90-SS	HS-9625-SS	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Fine Straight	1	100882	CAD	5/8	1/2	#10-32	Fine
HS-9625-SS-EF	HS-90-SS	HS-9625-SS-EF	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Extra Fine Straight	1	100895	CAD	5/8	1/2	#10-32	EF
HS-963-SS	HS-90-SS	HS-963-SS	Tool Steel Gripper - Square - 5/8 in X 3/8 in - Coarse Straight	1	100917	CAD	5/8	3/8	#10-32	Coarse
HS-9635-SS	HS-90-SS	HS-9635-SS	Tool Steel Gripper - Square - 5/8 in X 1/2 in - Coarse Straight	1	100946	CAD	5/8	1/2	#10-32	Coarse
HS-97-SS	HS-90-SS	HS-97-SS	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Fine Straight	1	101022	CAD	3/4	3/8	#10-32	Fine
HS-97-SS-EF	HS-90-SS	HS-97-SS-EF	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Extra Fine Straight	1	101024	CAD	3/4	3/8	#10-32	EF
HS-975-SS	HS-90-SS	HS-975-SS	Tool Steel Gripper - Square - 3/4 in X 1/2 in - Fine Straight	1	101054	CAD	3/4	1/2	#10-32	Fine
HS-975-SS-EF	HS-90-SS	HS-975-SS-EF	Tool Steel Gripper - Square - 3/4 in X 1/2 in - Extra Fine Straight	1	101057	CAD	3/4	1/2	#10-32	EF
HS-98-SS	HS-90-SS	HS-98-SS	Tool Steel Gripper - Square - 3/4 in X 3/8 in - Coarse Straight	1	101089	CAD	3/4	3/8	#10-32	Coarse
HS-985-SS	HS-90-SS	HS-985-SS	Tool Steel Gripper - Square - 3/4 in X 1/2 in - Coarse Straight	1	101094	CAD	3/4	1/2	#10-32	Coarse
HS-101-SS	HS-90-SS	HS-101-SS	Tool Steel Gripper - Square - 1 in X 3/8 in - Fine Straight	1	100389	CAD	1	3/8	1/4-28	Fine
HS-101-SS-EF	HS-90-SS	HS-101-SS-EF	Tool Steel Gripper - Square - 1 in X 3/8 in - Extra Fine Straight	1	100398	CAD	1	3/8	1/4-28	EF
HS-102-SS	HS-90-SS	HS-102-SS	Tool Steel Gripper - Square - 1 in X 3/8 in - Coarse Straight	1	100446	CAD	1	3/8	1/4-28	Coarse
HS-105-SS	HS-90-SS	HS-105-SS	Tool Steel Gripper - Square - 1 in X 1/2 in - Fine Straight	1	100461	CAD	1	1/2	1/4-28	Fine
HS-105-SS-EF	HS-90-SS	HS-105-SS-EF	Tool Steel Gripper - Square - 1 in X 1/2 in - Extra Fine Straight	1	100464	CAD	1	1/2	1/4-28	EF
HS-106-SS	HS-90-SS	HS-106-SS	Tool Steel Gripper - Square - 1 in X 1/2 in - Coarse Straight	1	100491	CAD	1	1/2	1/4-28	Coarse
