Grippers - Square - Solid Carbide - Diamond Serration - Tapped (FSC)

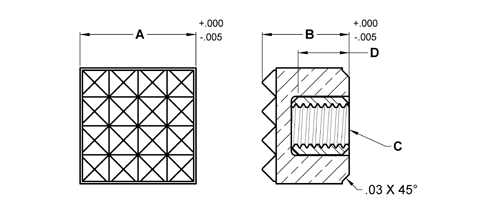

Drawing
Description
Media

Description

Made from solid carbide for high wear and high load applications. Serrated for positive holding in tough applications. Blind-hole tap for back side mounting.

Gripper Technical Information

FSC-870

Solid Carbide Gripper - Square - 1/2 in X 3/8 in - Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	Price Link	0	1	2	3	4
FSC-870	FSC-870	FSC-870	Solid Carbide Gripper - Square - 1/2 in X 3/8 in - Fine	1	100861	CAD		1/2	3/8	#10-32	3/16	Fine
FSC-875	FSC-870	FSC-875	Solid Carbide Gripper - Square - 1/2 in X 1/2 in - Fine	1	100869	CAD		1/2	1/2	#10-32	5/16	Fine
